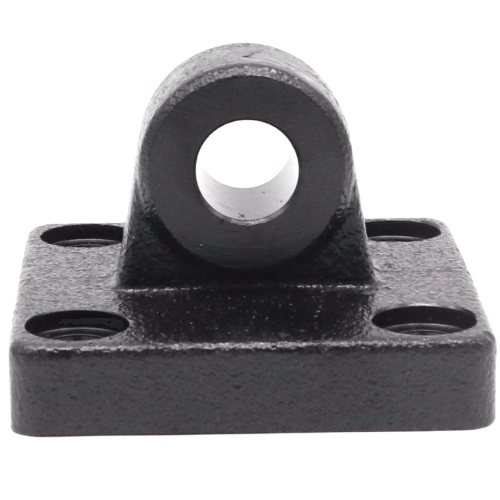

Airtac F-JSI-CA Single Ear Bracket Assembly Kit F-JSI32CA
AirTAC F-JSI-CA Single Ear Bracket Kit F-JSI32CA Technical Details
- Model: F-JSI32CA (Complete Kit)
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Mounting hole diameter: Ø8.5mm (for M8 screw)
- Bracket thickness: 10mm
- Dynamic load capacity: 1,200N
- Static load capacity: 3,500N
- Operating temperature: -20°C to 120°C
- Corrosion resistance: 500hr salt spray test passed
- Compatible cylinder series: SDA/SI/SD/SDG 32mm bore

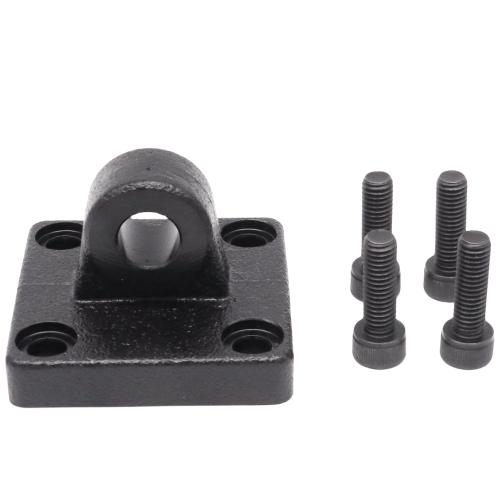

- Included hardware: M8×25 hex socket bolt (Class 12.9), flat washer, spring washer
- Weight: 0.28kg (complete kit)
- Dimensions: 82mm(L) × 32mm(W) × 22mm(H)
Precision-engineered mounting solution for 32mm bore cylinders, featuring reinforced rib design and military-grade fasteners. The asymmetric ear structure allows offset load distribution while maintaining 4-axis adjustability (±2° vertical/horizontal). Includes anti-vibration spring washer for shock absorption in high-cycle applications.
- Robotic arm joint actuators in electronics assembly lines
- Vertical cylinder mounting on packaging machine stoppers
- Multi-axis pneumatic positioning systems
- Material handling equipment with side-mounted cylinders
- Automated conveyor diverter mechanisms
Mounting protocol:
Apply 25-30N·m torque using calibrated tool. Lubricate bolt threads with
MOS2 grease before installation. Perform torque check after 50 operating hours.
