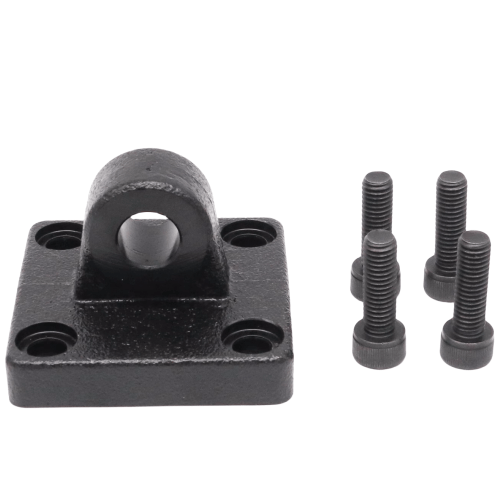

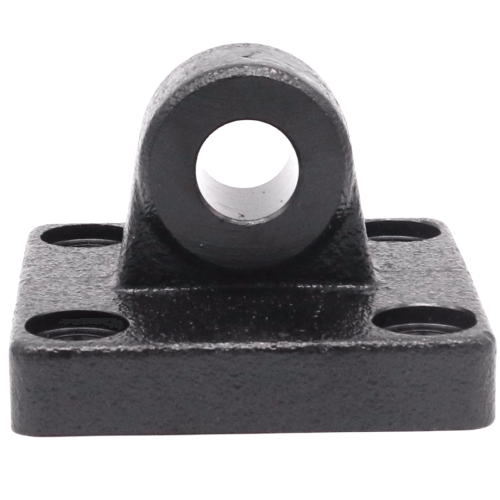

Airtac F-JSI-CA Single Ear Bracket Assembly Kit F-JSI40CA
AirTAC F-JSI-CA Single Ear Bracket Kit F-JSI40CA Technical Details
- Full model designation: F-JSI40CA (Complete assembly kit)
- Material: Aluminum alloy ADC12 with oxidation-resistant coating
- Mounting hole spacing: 30±0.2mm (center-to-center)
- Compatible rail types: SHS/SLF series 20mm width linear guides
- Surface treatment: Black anodized (Alodine 1200S compliant)
- Temperature tolerance: -40℃ to 120℃ (continuous operation)
- Fastener specs: M6×12mm stainless steel hex socket screws (Class 12.9)
- Vibration resistance: 5-2000Hz, 15G max (MIL-STD-810G method 514.6)
- Static load capacity: 1,200N vertical / 800N lateral
- Torque rating: Max 35N·m during installation
- Weight: 284g ±5g (including all hardware)
- Dimensions: 78mm(L) × 42mm(W) × 28mm(H)
- Surface roughness: Ra 0.8μm on contact areas
- Corrosion resistance: 96hrs salt spray test (ASTM B117)
Precision-machined positioning bracket with integrated vibration damping design, featuring CNC-milled locating surfaces for repeatable alignment (±0.02mm tolerance). Includes pre-installed thread locker on fasteners for industrial vibration environments. Compatible with ISO 10243 standard shock absorbers.
- Linear motion system end stops in CNC gantry systems
- Robotic arm joint reinforcement in automotive assembly lines
- Vibration-sensitive optical platform stabilization
- High-cycle packaging machinery shock absorption mounts
- Semiconductor wafer handling equipment positioning
Mounting protocol:
Apply 2.5-3.5N·m torque during initial installation using calibrated tool.
Re-torque after 50 operating hours. Use alcohol-cleaned surfaces for optimal
friction characteristics. Replace damping pads every 200,000 cycles.
