Airtac F-JSI-CA Single Ear Bracket Assembly Kit F-JSI50CA
AirTAC F-JSI-CA Single Ear Bracket Kit F-JSI50CA Technical Details
- Full model number: F-JSI50CA
- Type: Universal single-ear mounting bracket kit
- Material: Aluminum alloy ADC12 (anodized surface)
- Max load capacity: 50kg vertical static load
- Mounting hole spacing: 32±0.2mm horizontal × 26±0.2mm vertical
- Thread specifications: M6×1.0 internal threads (4 places)
- Surface hardness: HV 120±15
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: 96hr salt spray test passed
- Weight: 0.82kg (complete kit)
- Dimensions: 100mm(L) × 50mm(W) × 25mm(H)

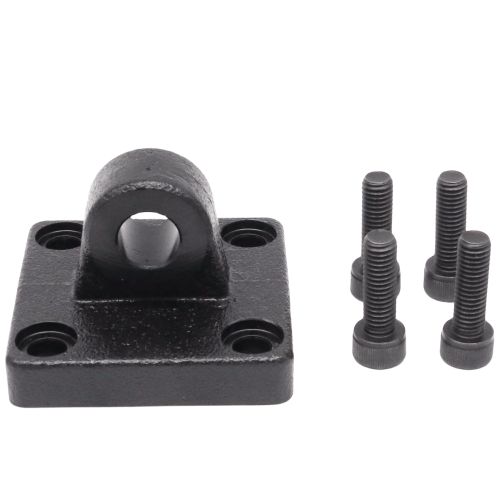

- Included components: Bracket body, M6×12 hex socket screws (4pcs), anti-vibration washers

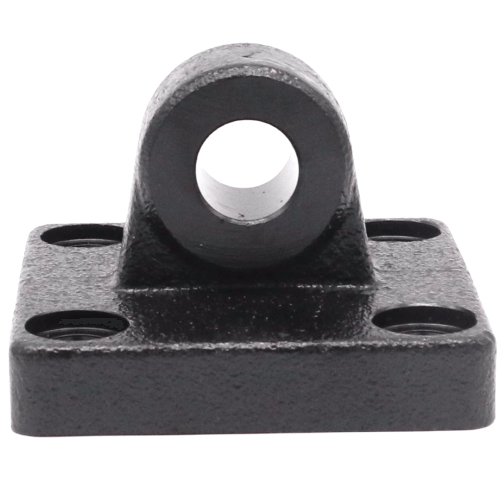

Heavy-duty alignment bracket designed for precise cylinder mounting in vibration-prone environments. Features CNC-machined locating surfaces with ±0.1mm parallelism tolerance and integrated shock absorption through compression-loaded washer design. Compatible with ISO 15552 standard cylinders.
- Pneumatic actuator mounting in automated assembly lines
- Vibration isolation for servo-pneumatic systems
- Modular fixture setups in semiconductor handling equipment
- Replacement part for packaging machine cylinder supports
- Robotic end-effector mounting platforms
Mounting protocol:
Use 4.8-5.2Nm torque for M6 fasteners. Apply thread-locking compound
in high-cycle applications (>10,000 cycles/day). Align bracket ear
within 0.5° of cylinder axis during installation.
