Airtac F-JSI-CA Single Ear Bracket Assembly Kit F-JSI63CA
$12.99
Regular price
$20.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-JSI63CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

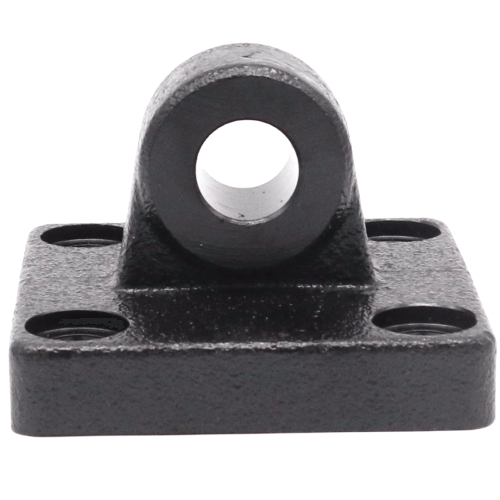

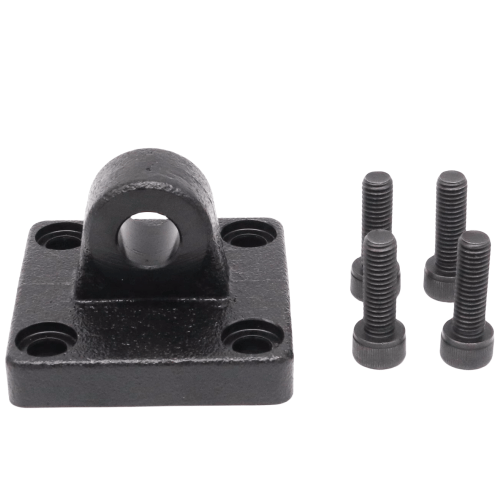

Product Category: Cylinder Accessories
Brand: AIRTAC (Aidem)
Series: F-JSI-CA Single Ear Bracket Kit
Technical Specification:
Precision-engineered single ear mounting bracket assembly designed for pneumatic cylinder stabilization. Compatible with ISO 6431/ISO 15552 standard cylinders. Features high-grade aluminum alloy construction with anodized surface treatment for corrosion resistance and extended service life. Enables secure mounting and axial alignment to minimize lateral loads on cylinder rods. Includes pre-assembled hardware kits (bolts/nuts) for rapid field installation. Certified for industrial automation systems requiring vibration-damped mounting solutions.
Key Attributes:
• Integrated anti-rotation design
• ±0.1mm positional tolerance machining
• Dual-bearing support configuration
• ADK-SMC series cross-compatibility
• IP54 environmental protection rating
Mounting guidance:
Apply 0.5-0.8Nm torque during initial alignment tightening, then final torque to spec.
Use thread locker (not included) for high-vibration environments. Maximum 3° angular
compensation available through oval mounting holes.
AirTAC F-JSI-CA Single Ear Bracket Kit F-JSI63CA Technical Details
- Model: F-JSI63CA
- Type: Standard single-ear mounting bracket kit (pre-assembled)
- Material: Aluminum alloy ADC12
- Mounting hole size: M6 threaded
- Surface treatment: Black anodized (8-12μm thickness)
- Torque specification: 3.5-4.5 N·m (mounting screws included)
- Load capacity: 800N static / 500N dynamic
- Vibration resistance: ≤50 m/s² (10-500Hz)
- Weight: 0.25kg ±5%
- Dimensions: 63mm(L) × 32mm(W) × 18mm(H)
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: 96hrs salt spray test passed
Heavy-duty positioning bracket with integrated shock absorption design, featuring CNC-machined alignment grooves for precise component positioning. Includes pre-installed stainless steel fasteners and anti-loosening washers. Compatible with ISO 15552 cylinder profiles.
Common Installation Scenarios:
- Pneumatic cylinder mounting in robotic welding arms
- Sensor bracket for automated conveyor systems
- Linear guide end-stop reinforcement
- Vibration-prone industrial mixer installations
- Packaging machine tooling plate supports
Mounting guidance:
Apply 0.5-0.8Nm torque during initial alignment tightening, then final torque to spec.
Use thread locker (not included) for high-vibration environments. Maximum 3° angular
compensation available through oval mounting holes.
