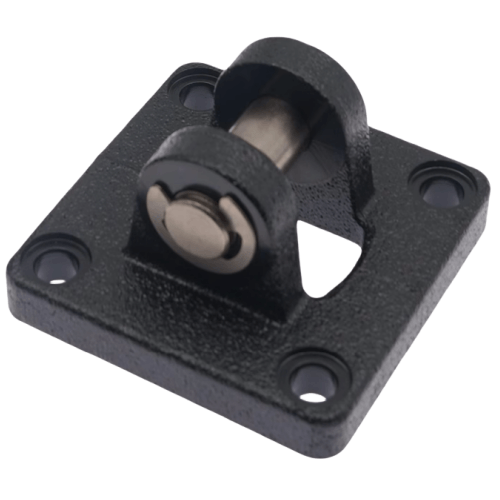

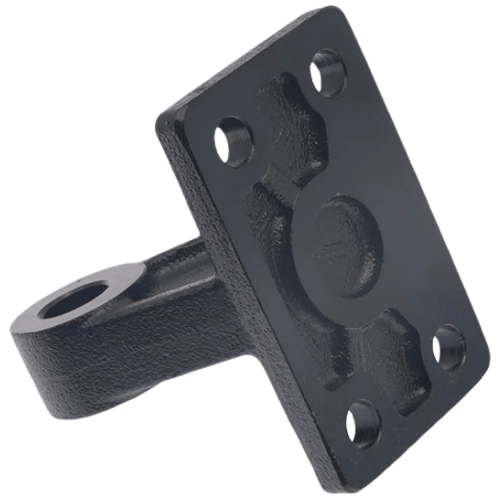

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI100CB
AirTAC F-JSI-CB Series Double Ear Fixation Bracket Kit (F-JSI100CB)
- Model: F-JSI100CB (Complete Kit)
- Material: High-grade aluminum alloy ADC12
- Surface treatment: Anodized oxidation (Black)
- Mounting hole spacing: 100±0.2mm (Center-to-center)
- Bolt specification: M6×1.0 thread pitch
- Load capacity: Max 450N static load (Per bracket)
- Weight: 0.28kg ±5% (Including all hardware)
- Dimensions: 112mm(L) × 38mm(W) × 18mm(H) (Per bracket unit)
- Operating temperature: -40℃ to 120℃
- Vibration resistance: 10-2000Hz, 20m/s² max
- Corrosion resistance: 96hrs salt spray test passed
- Package includes: 2x Brackets, 4x M6×25 hex bolts, 4x M6 spring washers, 4x M6 flat washers
Precision-engineered mounting solution for pneumatic cylinder installations, featuring dual reinforced ear design with anti-vibration grooves. The aerospace-grade aluminum construction ensures thermal stability during rapid cycling operations. Pre-lubricated threads and color-coded washers simplify field maintenance.
- Robotic arm joint stabilization in automotive assembly lines
- Vertical mounting of ISO cylinder series (MA/MAL)
- Vibration-sensitive metering pump installations
- Modular conveyor system framework connections
- High-cycle packaging machinery actuator supports
Installation protocol:
Apply 2.5-3.0N·m torque using calibrated wrench. For angled installations >45°,
use supplementary locking plate (sold separately). Clean mounting surface with
isopropyl alcohol before assembly.
