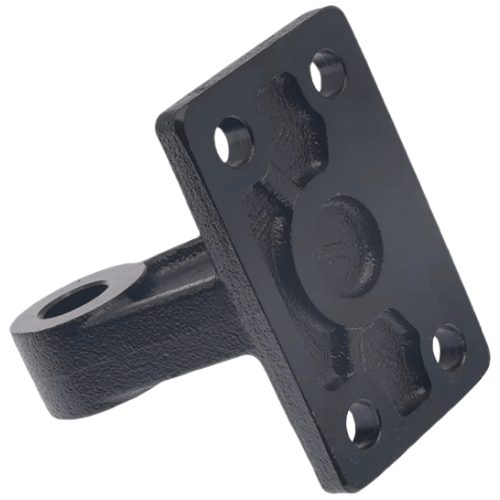

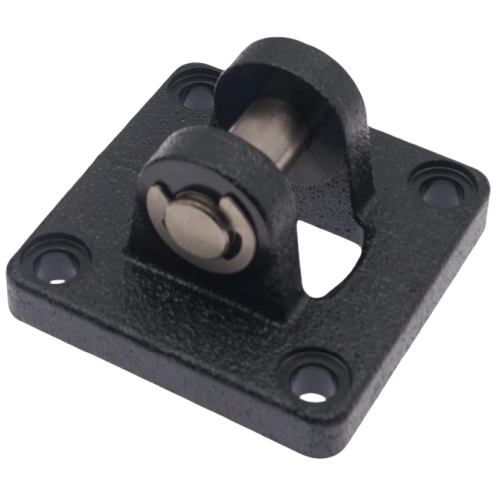

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI32CB
AirTAC F-JSI-CB Series Double Ear Fixation Bracket Kit F-JSI32CB Technical Details
- Model: F-JSI32CB (Complete Kit)
- Type: Universal mounting bracket for cylinder fixation
- Material: Aluminum alloy ADC12 with oxidation treatment
- Mounting Hole Spacing: 32mm center-to-center
- Compatible Cylinder Series: SDA/SI/SDAB/SLAB series Ø32mm bore
- Surface Hardness: HV 120±15 (hard anodized layer ≥15μm)
- Temperature Range: -20℃ to 100℃ (continuous operation)
- Radial Load Capacity: Max 980N at 0.5MPa
- Axial Load Capacity: Max 1,470N at 0.5MPa
- Weight: Approximately 450g (including all hardware)
- Dimensions: 32mm(W) × 50mm(L) × 60mm(H)
- Mounting Screws: M6×16mm stainless steel (x4 included)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant, ISO 9001 manufacturing
Precision-engineered bilateral mounting solution for stable cylinder fixation in high-cycle applications. Features anti-corrosion coating and machined locating surfaces (flatness ±0.05mm) for precise alignment. Includes vibration-resistant lock washers and pre-applied thread locker on fasteners.
- Robotic arm joint actuators in automotive assembly
- Vertical cylinder mounting in packaging machinery
- Multi-axis positioning systems requiring vibration damping
- Plastic injection molding machine ejector mechanisms
- CNC equipment tool changer actuators
Installation Protocol:
Use torque wrench (recommended 5.5-6.5N·m for M6 screws).
Apply alignment gauge (P/N: AG-32C) during assembly.
Replace shock-absorbing pads every 500,000 cycles in high-frequency applications.
| Property | Property Value |
|---|---|
| sku | F-JSI32CB |
