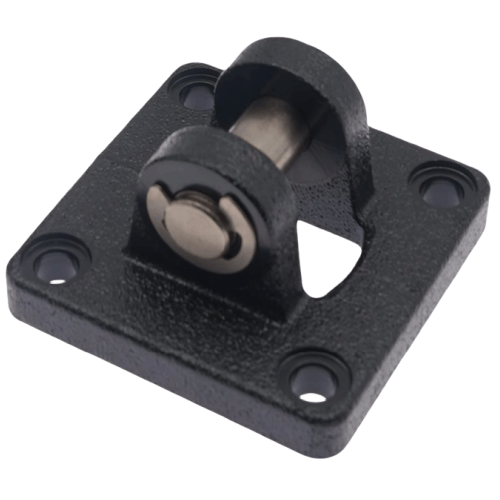

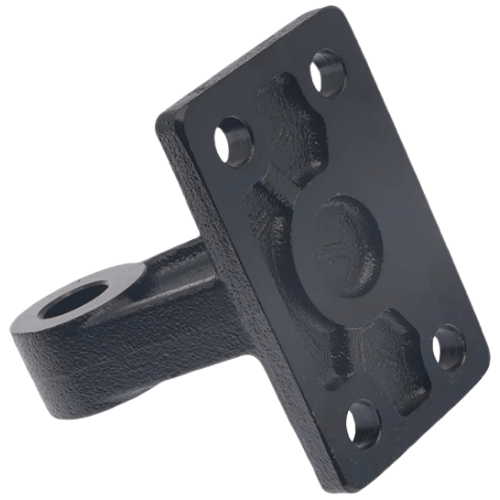

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI40CB
AirTAC F-JSI-CB Double Ear Mounting Bracket Kit F-JSI40CB Technical Details
- Model: F-JSI40CB
- Type: Pre-assembled dual-ear mounting bracket kit
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized oxidation
- Compatible cylinder series: JSI/JSC/JSCM 40mm bore size
- Mounting hole spacing: 60±0.2mm (center-to-center)
- Bolt specifications: M8×1.25×16L (4 pcs included)
- Maximum radial load capacity: 1,500N
- Maximum axial load capacity: 800N
- Operating temperature: -20℃ to 100℃
- Weight: 380±10g (including fasteners)
- Dimensions: 85mm(L) × 52mm(W) × 42mm(H)
- Vibration resistance: ≤20m/s² (ISO 10816-3 compliant)
Precision-engineered mounting solution for stable cylinder fixation in high-vibration environments. Features anti-corrosion coating and pre-installed vibration-resistant nuts with Loctite® thread locker. Includes stainless steel mounting hardware for outdoor/chemical exposure applications.
- Robotic arm joint articulation systems
- Conveyor belt tensioning mechanisms
- Automated packaging machine pushers
- CNC machine tool clamping devices
- Food processing equipment actuators
Installation guidance:
Use 8-10Nm torque for M8 bolts. Apply silicone grease to mating surfaces
when used in thermal cycling environments. Align laser-etched orientation
marks with cylinder body grooves.
- Requires 40mm cylinder diameter clearance
- Compatible with ISO 15552 (formerly ISO 6431) profiles
- Non-marring design for cleanroom environments (Class 7 compliant)
| Property | Property Value |
|---|---|
| sku | F-JSI40CB |
