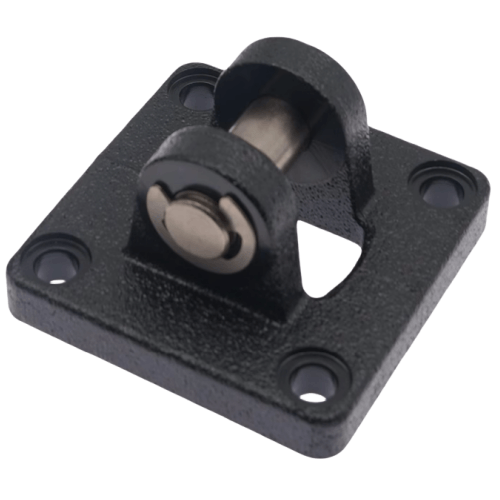

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI50CB
AirTAC F-JSI-CB Double Ear Fixing Bracket Kit F-JSI50CB Technical Details
- Model: F-JSI50CB
- Type: Pre-assembled double ear mounting bracket kit
- Material: Aluminum alloy (AL6061-T6)
- Compatible cylinder series: JSI series Ø50mm bore
- Mounting hole diameter: 11mm (precision tolerance ±0.02mm)
- Bolt specification: M8×1.25 (Class 8.8 high-strength)
- Surface treatment: Anodized (natural silver finish)
- Temperature resistance: -20℃ to 120℃
- Static load capacity: 1,200N (axial direction)
- Torque specification: 14-16 N·m (recommended tightening torque)
- Weight: 328g ±5g
- Dimensions: 78mm(L) × 50mm(W) × 25mm(H)
- Pivot clearance: 0.1-0.3mm (factory pre-adjusted)
- Corrosion resistance: 500hr salt spray test passed
Precision-engineered swing mount solution for pneumatic cylinders, featuring laser-etched alignment marks and pre-installed wear-resistant brass bushings. The through-hole design allows bi-directional load transmission, with hardened steel pivot pins (HRC 45-50) ensuring smooth articulation. Includes stainless steel mounting hardware and anti-vibration washers.
- Multi-axis robotic arm joint connections
- Packaging machine rotary index table drives
- Automated welding equipment positioners
- Material handling system pivot mechanisms
- Semiconductor equipment vibration isolation mounts
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on bolts.
Use torque wrench for final tightening - exceed 18N·m may deform bushings.
Perform alignment check after 50 operation cycles.
| Property | Property Value |
|---|---|
| sku | F-JSI50CB |
