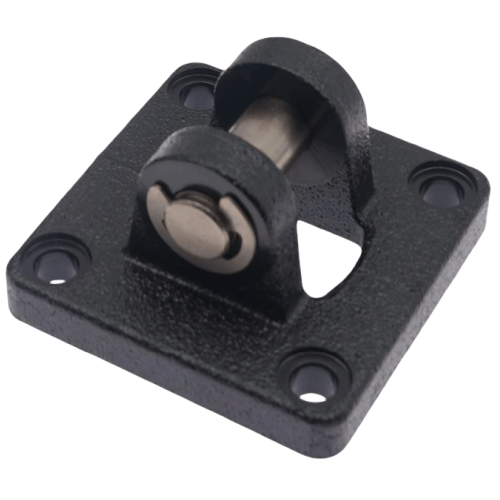

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI63CB
AirTAC F-JSI-CB Series Double-Ear Fixed Mount Kit (F-JSI63CB) Specifications
- Model: F-JSI63CB
- Type: Pre-assembled mounting bracket kit
- Material: Aluminum alloy (AL6063-T5)
- Applicable cylinder series: SDA/SMA/SCA 63mm bore size
- Mounting type: Double-ear fixed pivot
- Hole spacing: 70±0.2mm (center-to-center)
- Pin hole diameter: Φ12H7 (+0.018/0 mm)
- Fastener specs: M8×1.25 stainless steel screws (Class 12.9)
- Surface treatment: Anodized (black, 15-25μm thickness)
- Temperature range: -20℃ to 150℃
- Static load capacity: 2,500N (axial direction)
- Dynamic load capacity: 1,800N (radial, at 0.5m/s)
- Weight: 480±10g (complete kit)
- Dimensions: 145mm(L) × 85mm(W) × 32mm(H)
Heavy-duty mounting solution for precise cylinder alignment, featuring pre-machined mounting surfaces with ±0.05mm parallelism tolerance. Includes vibration-resistant lock nuts and precision ground locating pins. Corrosion-resistant design withstands industrial coolants and hydraulic fluids.
- Robotic arm joint articulation systems
- Plastic injection molding machine clamps
- Automated conveyor sorting mechanisms
- CNC machine tool fixturing
- Packaging machine vertical lift units
Installation protocol:
Apply 25-30N·m torque during screw tightening using cross-pattern sequence.
Lubricate pivot pins with ISO VG32 hydraulic oil before assembly.
Maintain 0.5-1mm clearance between bracket ears and cylinder body.
| Property | Property Value |
|---|---|
| sku | F-JSI63CB |
