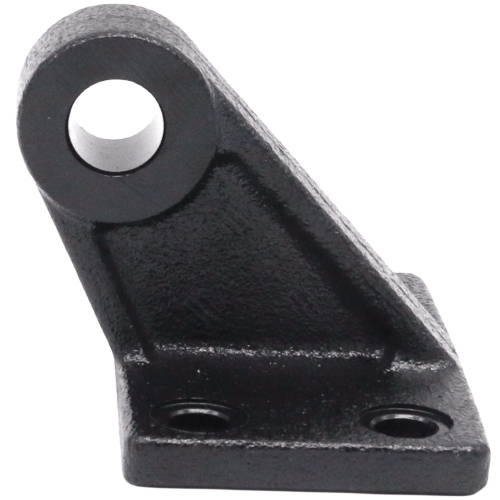

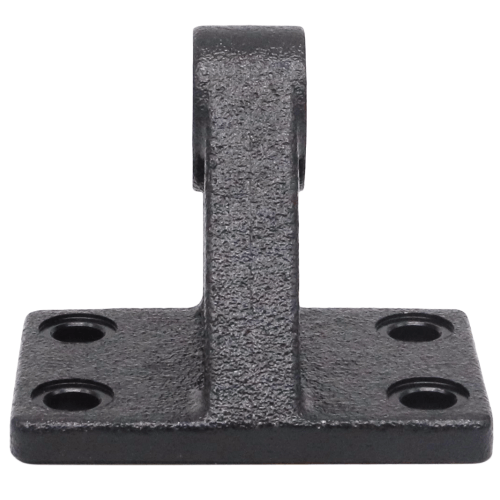

Airtac F-JSI-CR Single Angled Lug Bracket Assembly Kit F-JSI32CR
AirTAC F-JSI-CR Single Oblique Ear Bracket Kit F-JSI32CR Technical Details
- Model: F-JSI32CR
- Type: Single oblique ear fixed bracket assembly kit
- Material: Cold-rolled steel with zinc-nickel alloy coating
- Mounting hole spacing: 32±0.2mm (horizontal) × 15±0.1mm (vertical)
- Bracket height: 25mm ±0.3mm
- Weight: 184g ±5g
- Dimensions: 62mm(L) × 38mm(W) × 28mm(H)
- Installation screw specification: M5×0.8 thread pitch (included)
- Load capacity: Static 450N, Dynamic 220N
- Surface treatment: Electro-galvanized with yellow chromate passivation
- Temperature resistance: -30℃ to 120℃
- Package contents: Bracket body ×1, M5×12 hex socket screw ×4, Anti-vibration washer ×4
Precision-engineered mounting solution featuring 7° oblique angle design for enhanced component alignment in confined spaces. The triple-layer corrosion protection system (base metal + zinc coating + chromate layer) ensures durability in humid environments. Pre-assembled with vibration-resistant fasteners using Loctite 243 threadlocker.
- Linear guide end mounting for CNC machine tools
- Sensor bracket in automated assembly lines
- Pneumatic cylinder support in packaging conveyors
- Vibration isolation mounting for optical equipment
- Robotic arm accessory attachment points
Installation protocol:
Apply 0.6-0.8 N·m torque during screw tightening using calibrated tool.
Perform torque check after 24hrs operation. Avoid mixing with aluminum
components without dielectric separator.
| Property | Property Value |
|---|---|
| sku | F-JSI32CR |
