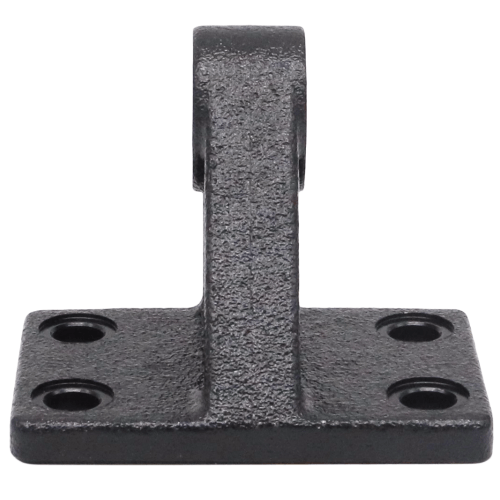

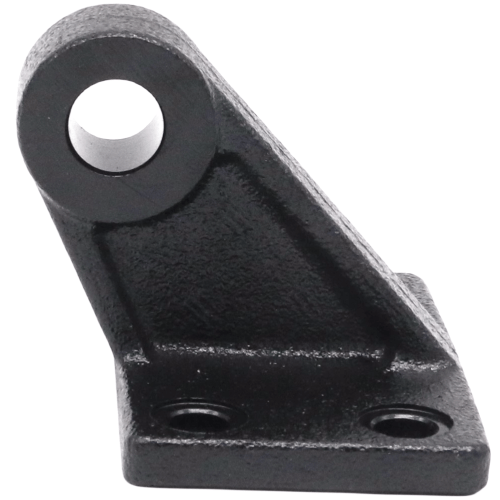

Airtac F-JSI-CR Single Angled Lug Bracket Assembly Kit F-JSI50CR
$14.38
Regular price
$21.88
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-JSI50CR
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-JSI-CR Single Angled Bracket Complete Kit
The F-JSI-CR Single Angled Mounting Bracket Assembly is a precision-engineered pneumatic cylinder accessory designed for secure fixed-axis mounting applications. Featuring a 45° angled ear configuration with integrated reinforced rib structure, this complete bracket kit ensures optimal force distribution and vibration damping in compact installation spaces. Manufactured from grade 5052 aluminum alloy with an electrophoresis coating, it provides exceptional corrosion resistance and mechanical stability for ISO-standard pneumatic cylinders. The pre-assembled package includes mounting hardware compliant with DIN standards, enabling tool-free installation and maintenance. Ideal for automated machinery requiring angular adjustment tolerance (±2°) in material handling, packaging, and assembly systems.
Mounting protocol:
Use calibrated torque wrench for bolt tightening. Apply Loctite 243
threadlocker on clean threads. Allow 30min curing before load application.
Re-torque after 48hrs of continuous operation.
AirTAC F-JSI-CR Single Angled Ear Bracket Kit F-JSI50CR Technical Details
- Model: F-JSI50CR
- Type: Pre-assembled angled mounting bracket kit
- Material: Aluminum alloy ADC12
- Surface treatment: Black electrophoretic coating
- Mounting hole spacing: 50mm (±0.2mm)
- Maximum load capacity: 1,200N static load / 300N dynamic
- Compatible cylinder series: SDA/SI/SD/SDG/MGPM
- Temperature resistance: -20°C to 120°C
- Corrosion resistance: 500hr salt spray test passed
- Weight: 385g ±5g (including all hardware)
- Dimensions: 78mm(L) × 50mm(W) × 34mm(H)
- Fastener specs: M6×16 stainless steel hex bolts (ISO 4014)
- Torque specification: 4.5-5.5 N·m (mounting screws)
- Vibration resistance: 5-2000Hz, 15G acceleration
- Certification: RoHS compliant
Precision-engineered mounting solution featuring 15° offset angle design for confined spaces. Includes vibration-damping rubber pads (Shore A 70±5) and pre-installed locking nuts. Anodized finish prevents galling during installation. Rated for 1 million+ cycles at maximum load.
Installation Scenarios:
- Robotic arm joint stabilization in automotive welding lines
- Multi-axis pneumatic actuator mounting for packaging machinery
- Vibration-sensitive metrology equipment bases
- Modular production line quick-change fixtures
- AGV (Automated Guided Vehicle) lifting mechanisms
Mounting protocol:
Use calibrated torque wrench for bolt tightening. Apply Loctite 243
threadlocker on clean threads. Allow 30min curing before load application.
Re-torque after 48hrs of continuous operation.
Configuration tip:
Pair with AirTAC SDA50×50 cylinders for optimal force transfer.
Not recommended for lateral torsional loads exceeding 15Nm.
| Property | Property Value |
|---|---|
| sku | F-JSI50CR |
