Airtac F-JSI-FA Front Flange Mounting Plate Kit F-JSI125FA

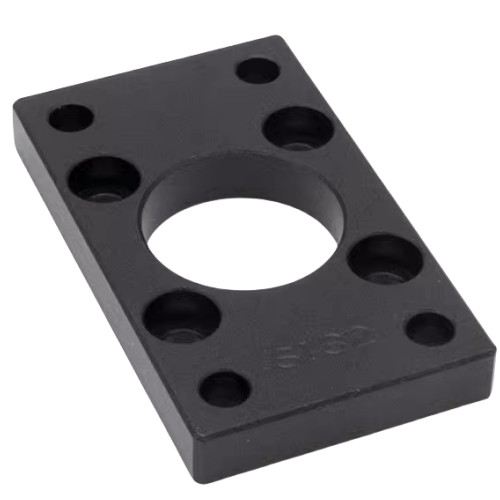

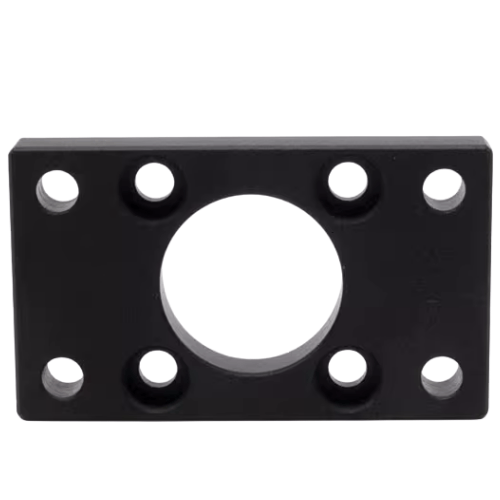

AirTAC F-JSI-FA Series Front Flange Bracket Kit F-JSI125FA Technical Details
- Model: F-JSI125FA (Complete Kit)
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Black Anodized
- Mounting Pattern: ISO 15552/VDMA 24562 Standard
- Compatible Cylinder Bore: Ø125mm
- Mounting Hole Spacing: 160mm × 160mm (±0.1mm)
- Bracket Thickness: 20mm
- Weight: 2.85kg (Including Mounting Hardware)
- Dimensions: 210mm(W) × 180mm(D) × 25mm(H)
- Fastener Specifications: M12×1.75 Grade 10.9 Hex Bolts (Qty 4)
- Torque Specification: 85-95 N·m
- Load Capacity: 650kg Static / 450kg Dynamic
- Temperature Range: -40℃ to 150℃
- Vibration Resistance: ≤15G @ 10-2000Hz
Heavy-duty front flange mounting solution for ISO-standard pneumatic cylinders, featuring precision-machined surfaces (Ra 1.6μm) for perfect alignment. Includes vibration-resistant Nord-Lock washers and pre-applied Molykote anti-seize compound on threads. Designed for multi-axis force applications with integrated cable management slots.
- Automotive welding robot end-effector mounts
- Plastic injection molding machine clamp mechanisms
- High-cycle packaging line pusher assemblies
- Semiconductor handling robot base platforms
- Hydraulic press auxiliary cylinder stabilization
Installation Protocol:
Use 0.02mm feeler gauge to verify mounting surface flatness before assembly.
Apply 3-stage torque sequence (30% → 60% → 100%) in cross pattern.
Re-torque after 50 operational cycles.
