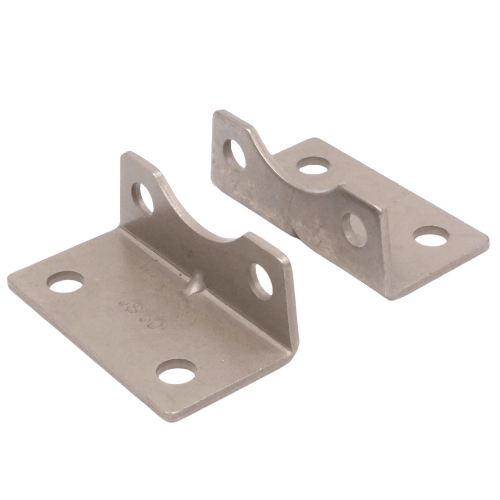

Airtac F-JSI-LB Axial Mounting Bracket Assembly Kit F-JSI100LB
AirTAC F-JSI-LB Series Axial Fixing Bracket Kit F-JSI100LB Technical Details
- Full model code: F-JSI100LB
- Type: Precision linear motion axial support kit
- Compatible rail: SBR/SBN/SBR20 series linear guides
- Material: Aluminum alloy base (A6063-T5) + CR12MoV hardened steel screws
- Surface treatment: Anodized silver (Aluminum parts)
- Weight: 328g ±5g (complete kit)
- Dimensions: 112mm(L) × 42mm(W) × 34mm(H)
- Mounting hole spacing: 80mm center-to-center
- Applicable shaft diameter: Ø15-20mm (adjustable range)
- Static load capacity: 1,200N (axial direction)
- Operating temperature: -30℃ to 120℃
- Vibration resistance: 10-55Hz (1.5mm amplitude)
- Repeat positioning accuracy: ±0.02mm
- Torque specification: 2.5-3.0N·m (mounting screws)

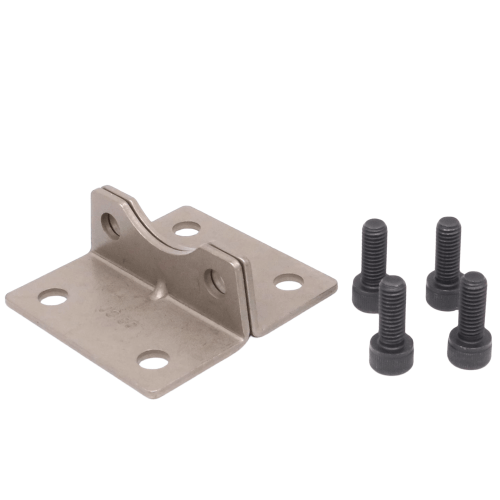

- Included components: Bracket body, clamp plates, M6×12 hex socket screws (4pcs), anti-vibration shims
Heavy-duty axial retention system designed for precise linear motion control in high-vibration environments. Features dual-position clamping with graduated pressure distribution and integrated anti-backlash mechanism. The zinc-nickel plated fasteners provide corrosion resistance exceeding 500hrs salt spray test.
- Industrial robot joint axis stabilization
- CNC machine tool ball screw end supports
- Automated conveyor roller shaft alignment
- 3D printer gantry motion systems
- Semiconductor wafer handling equipment
Installation protocol:
Apply 20-25N preload during assembly using torque wrench.
Lubricate guide shaft with ISO VG32 grease before clamping.
Maximum recommended lateral offset: 0.3mm/m.
| Property | Property Value |
|---|---|
| sku | F-JSI100LB |
