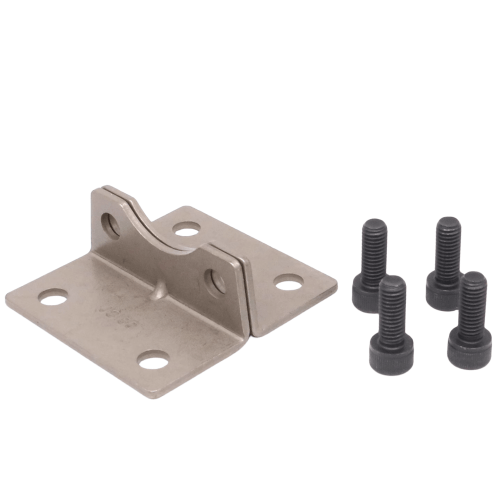

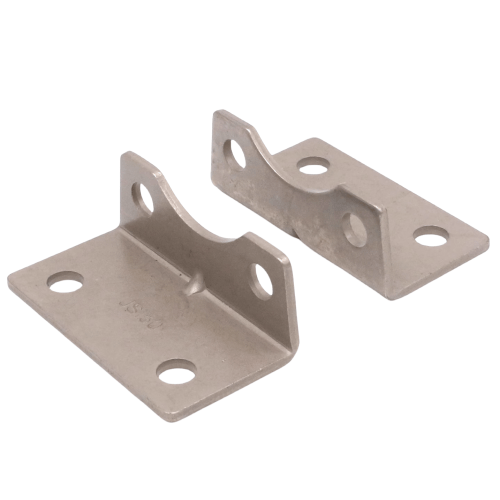

Airtac F-JSI-LB Axial Mounting Bracket Assembly Kit F-JSI80LB
AirTAC F-JSI-LB Series Axial Bracket Kit: F-JSI80LB Technical Details
- Model: F-JSI80LB (Complete Bracket Kit)
- Type: Precision-machined axial fixation mount for linear guides
- Compatible rail width: 20mm (optimized for SBR20/SBR30 series)
- Material: 6063-T5 aluminum alloy
- Surface treatment: Hard anodized (15-20μm thickness)
- Axial load capacity: ≤1,200N (static), ≤800N (dynamic)
- Radial load capacity: ≤900N (static), ≤600N (dynamic)
- Mounting hole specifications: 4×M8 threaded holes (8.4mm diameter through-holes)
- Torque requirements: 14-16N·m for M8 fasteners
- Operating temperature: -20℃ to 80℃
- Weight: 0.68kg ±2%
- Dimensions: 98mm(L) × 45mm(W) × 32mm(H)
- Parallelism tolerance: ≤0.02mm/m
- Surface roughness: Ra 1.6μm (mounting surfaces)
CNC-machined alignment bracket kit designed for permanent fixation of linear guide carriages, featuring anti-vibration locking design with dual-positioning pins (Ø6h6). Includes pre-installed wear-resistant shim plates (0.5mm thickness) for height compensation. Meets JIS B 1192-1994 standard for industrial mounting fixtures.
- Precision alignment of SBR-series linear motion systems
- Robotic arm joint reinforcement in automotive assembly lines
- CNC router gantry axis stabilization
- Semiconductor wafer handling equipment
- Medical imaging device sliding mechanisms
Mounting protocol:
Apply thread-locking compound (medium strength) before fastener installation.
Verify perpendicularity with 0.02mm/m precision level during alignment.
Thermal expansion compensation required when operating above 50℃.
| Property | Property Value |
|---|---|
| sku | F-JSI80LB |
