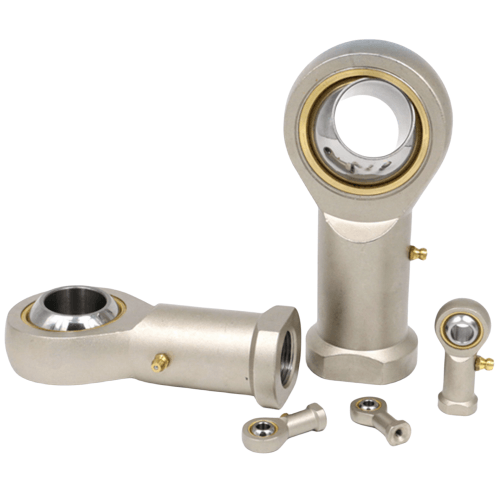

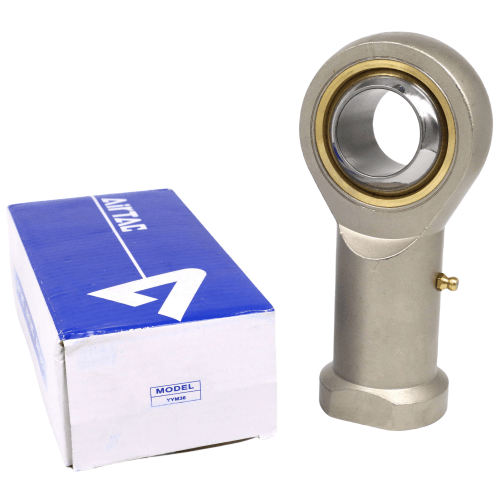

Airtac F-M-U Rod End Joint Assembly Kit F-M27X200U
AirTAC F-M-U Series F-M27X200U Rod End Bearing Kit Technical Details
- Full model designation: F-M27X200U
- Bearing type: Maintenance-free spherical plain bearing
- Male thread specification: M27×2.0 metric thread
- Rod diameter: Ø20 mm (chrome-plated steel)
- Stroke length: 200 mm nominal travel
- Static load capacity: 12,500 N radial / 8,200 N axial
- Dynamic load rating: 6,800 N radial / 4,500 N axial
- Swivel angle: ±6° permanent / ±12° momentary
- Housing material: Forged carbon steel (zinc-nickel plated)
- Liner material: PTFE composite with glass fiber reinforcement
- Temperature range: -30℃ to +120℃ continuous operation
- Corrosion resistance: 500+ hours neutral salt spray tested
- Mounting type: Through-hole with locknut (M27×2.0 included)
- Weight: 1,850 grams (complete assembly)
- Dimensions: 230mm(L) × 62mm(W) × 62mm(H)
Heavy-duty self-lubricating rod end designed for high-misalignment applications. Features integrated dust seals and hardened spherical surfaces for reduced wear. Pre-assembled kit includes precision-matched components: bearing housing, spherical stud, lock washer, and DIN985 nylon locknut.
- Automated welding robot wrist joints
- Hydraulic cylinder linkage in injection molding machines
- Conveyor system tensioning mechanisms
- Construction equipment boom articulation points
- Agricultural machinery steering linkages
Installation protocol:
Apply 25-30 N·m torque during locknut tightening. Perform alignment check
after 50 operating hours. Compatible with ISO 12240-2 standard mounting fixtures.
| Property | Property Value |
|---|---|
| sku | F-M27X200U |
| Thread Pitch | <2.0mm> |
| Thread Specification | M27 |
