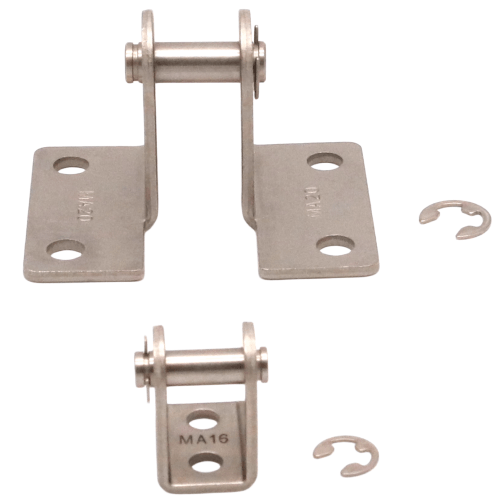

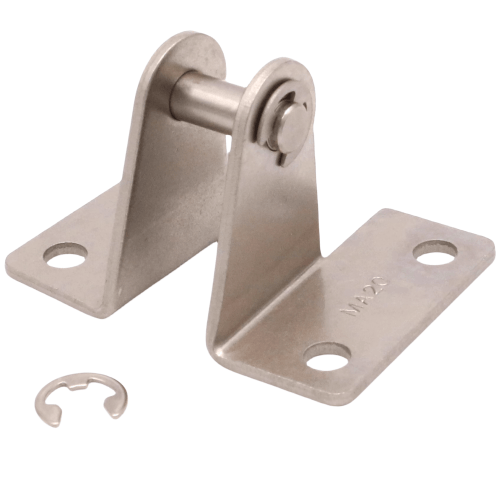

Airtac F-MA-SDB Rear Hinge Fixed Bracket Assembly F-MA16SDB
AirTAC F-MA-SDB Rear Hinge Bracket Kit F-MA16SDB Technical Details
- Model: F-MA16SDB (Complete Bracket Kit)
- Type: Rear hinge mounting bracket with integrated pivot mechanism
- Material: Aluminum alloy ADC12 (anodized surface)
- Compatible cylinder bore: Φ16mm series
- Mounting hole spacing: 25±0.1mm (vertical) × 40±0.1mm (horizontal)
- Thread specifications: M6×1.0 mounting screws (4 places)
- Pivot pin diameter: Φ8h7 (-0.010~-0.025mm tolerance)
- Surface treatment: Black anodized (Alodine 1200S equivalent)
- Operating temperature: -20℃ to 80℃ (continuous use)
- Max radial load: 350N (static), 180N (dynamic)
- Weight: 0.25kg ±5% (including all hardware)
- Dimensions: 52mm(L) × 38mm(W) × 24mm(H) (compact profile)
- Vibration resistance: 10-2000Hz, 15m/s² max
Precision-engineered swing mount for cylinder articulation, featuring dual ball bearings (6000ZZ type) in pivot assembly for smooth rotation. Includes corrosion-resistant M6 stainless steel mounting hardware (SHC4-8-25 screws, NW6 washers). Designed for ±15° angular compensation in misalignment scenarios.
- Rotary clamp mechanisms in robotic welding cells
- Oscillating end effectors for PCB handling robots
- Pneumatic press tooling with floating head compensation
- Packaging line divert arm actuators
- Semiconductor wafer transfer modules
Installation protocol:
Apply lithium-based grease (NLGI #2) to pivot shaft during assembly.
Torque mounting screws to 4.5N·m ±10% using crisscross pattern.
Verify free rotation (0.5-2N·cm breakaway torque) post-installation.
| Property | Property Value |
|---|---|
| sku | F-MA16SDB |
