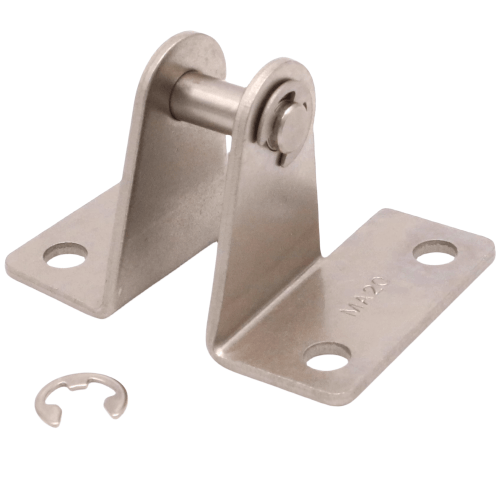

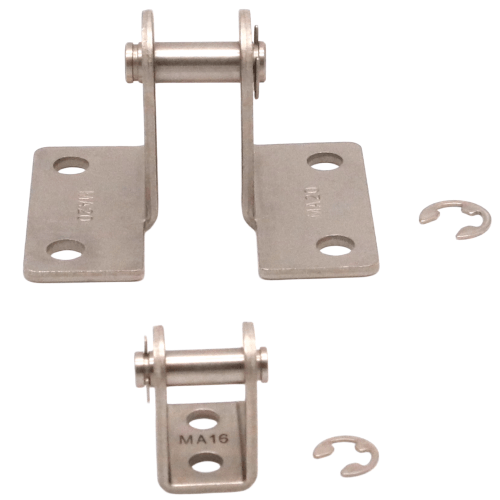

Airtac F-MA-SDB Rear Hinge Fixed Bracket Assembly F-MA20SDB
AirTAC F-MA-SDB Series Rear Hinge Mounting Bracket Kit F-MA20SDB Technical Details
- Model: F-MA20SDB (Complete Kit)
- Type: Rear swing hinge bracket assembly
- Compatible cylinder bore: Ø20mm
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Mounting hole spacing: 30±0.2mm (vertical) × 16±0.1mm (horizontal)
- Pivot rotation range: 180° adjustable
- Fastener specs: M5×16 hex socket screws (Grade 12.9)
- Lock nut torque: 2.5-3.0 N·m
- Included components: Bracket body, pivot shaft, washers, circlips, mounting screws
- Weight: 328g ±5g
- Dimensions: 78mm(L) × 42mm(W) × 24mm(H)
- Operating temperature: -20°C to 80°C
- Vibration resistance: ≤49 m/s² (10-150Hz)
Precision-engineered mounting solution for pneumatic cylinder installations requiring angular adjustment. Features hardened pivot pins with PTFE-impregnated bushings for smooth rotation and minimal backlash. The modular design allows quick reconfiguration between fixed and floating mount configurations. Includes anti-vibration shims for high-cycle applications.
- Rotary clamp mechanisms in packaging machinery
- Multi-axis robotic end effector mounting
- Conveyor diverters with adjustable actuation angles
- Semiconductor handling equipment requiring vibration damping
- Automated welding fixture positioning systems
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) to pivot shaft threads.
Torque mounting screws in crisscross pattern to ensure even load distribution.
Lubricate bushings with ISO VG32 hydraulic oil before initial operation.
| Property | Property Value |
|---|---|
| sku | F-MA20SDB |
