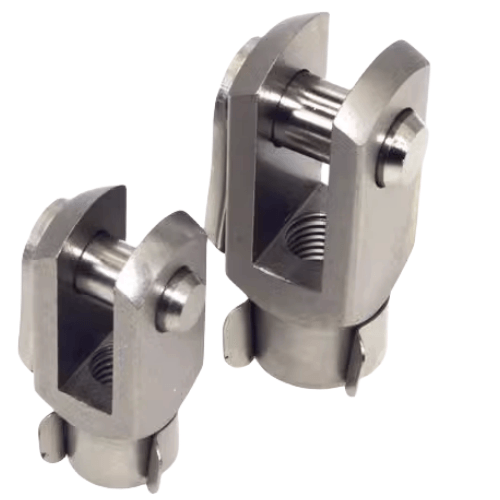

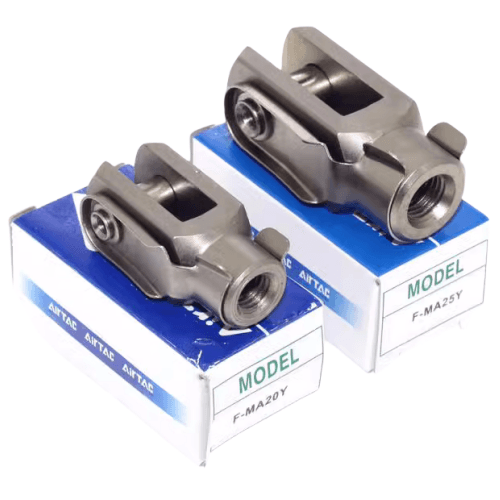

Airtac F-MA-Y Adapter Assembly Kit F-MA25Y
AirTAC F-MA-Y Series Fitting Kit F-MA25Y Technical Details
- Model: F-MA25Y (Complete Assembly Kit)
- Thread Specification: G1/4 (BSPP) female threads
- Material Composition:
- Body: Nickel-plated brass (ISO 1179 compliant)
- Seal: High-grade NBR rubber (-20℃ to 80℃)
- Nut: Cold-forged carbon steel with zinc coating
- Pressure Rating: 0.05-1.0 MPa (7-145 PSI)
- Burst Pressure: ≥3.0 MPa (435 PSI)
- Flow Capacity: 450 NL/min (at 0.5 MPa)
- Tube Compatibility: Ø6mm (1/4") OD pneumatic tubing
- Weight: 82g ±2g (complete assembly)
- Dimensions:
- Length: 36mm (including threads)
- Width: 22mm (hex flat-to-flat)
- Height: 29mm (nut-to-body end)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Corrosion Protection: 96hr salt spray test passed
Pre-assembled push-to-connect fitting kit with industrial-grade sealing, designed for rapid tubing installation without special tools. Features anti-vibration locking mechanism and 360° rotatable body for flexible piping arrangements. Meets ISO 14743 standards for pneumatic quick couplings.
- Modular pneumatic circuit assembly lines
- Robotic arm tool changing systems
- CNC machine coolant line connections
- Mobile hydraulic test bench setups
- Cleanroom equipment air supply interfaces
Installation protocol:
Cut tubing square (max 0.5° angular tolerance), insert fully until "click" sound.
For gas applications, apply 15-20N·m torque using crowfoot wrench.
Annual seal inspection recommended in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | F-MA25Y |
