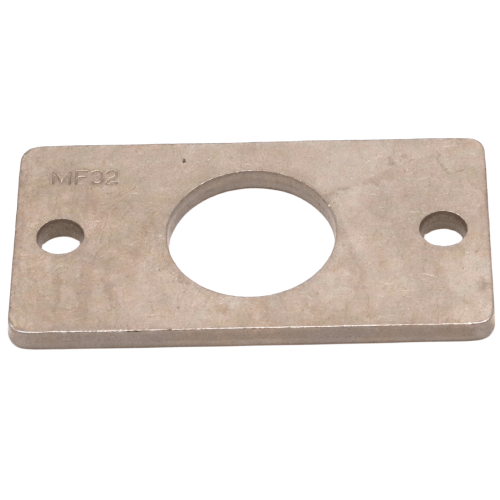

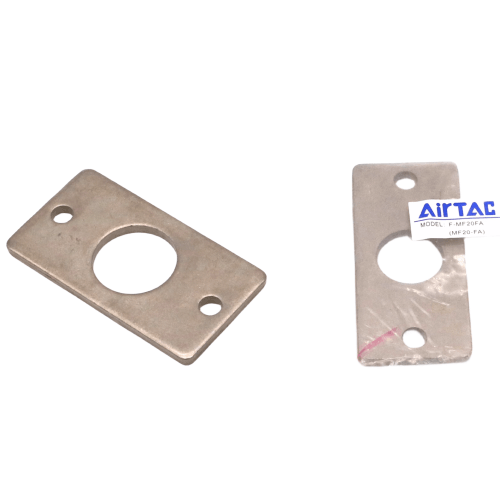

Airtac F-MF-FA Front Flange Mounting Plate Assembly Kit F-MF32FA
AirTAC F-MF-FA Front Flange Mounting Plate Kit F-MF32FA Specifications
- Model: F-MF32FA
- Type: Pre-assembled front flange mounting bracket kit
- Compatible series: MF series mini cylinders (specifically MF32)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized finish (gray)
- Mounting hole spacing: 32mm × 32mm square pattern
- Thread specifications: M5×0.8 mounting screws (4 places)
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: Class C4 (ISO 9223)
- Static load capacity: 1,200N (axial direction)
- Weight: 340g ±5g
- Dimensions: 72mm(L) × 72mm(W) × 12mm(H)
- Kit includes: Mounting plate, hex socket screws (M5×12L), washers, alignment pins
Precision-engineered mounting solution for MF series compact cylinders, featuring vibration-damping design with integrated alignment pins for perfect coaxial installation. The hardened contact surface (HV400) ensures stable load distribution and prevents fretting corrosion. Includes pre-lubricated fasteners for 10,000+ cycle durability.
- Robotic end-effector mounting
- Precision pick-and-place systems
- Semiconductor handling equipment
- Modular pneumatic tooling stations
- High-cycle packaging machinery
Installation protocol:
Clean mounting surfaces with IPA before assembly. Use torque-controlled driver
(1.2-1.5N·m for M5 screws). Perform concentricity check with dial indicator
(max 0.05mm TIR).
