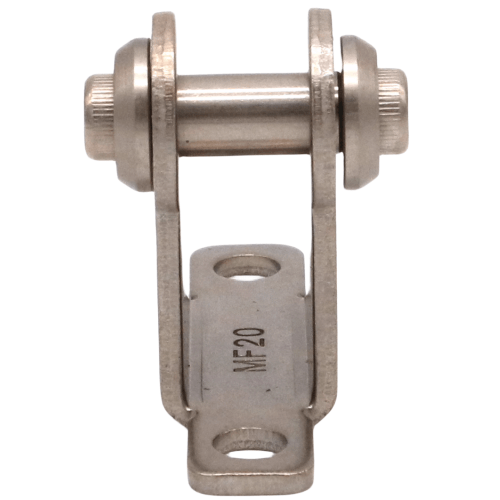

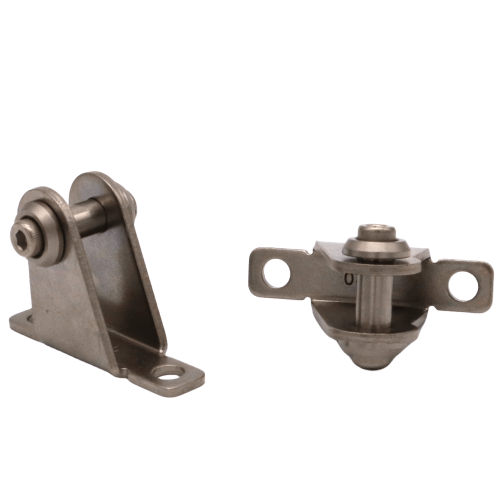

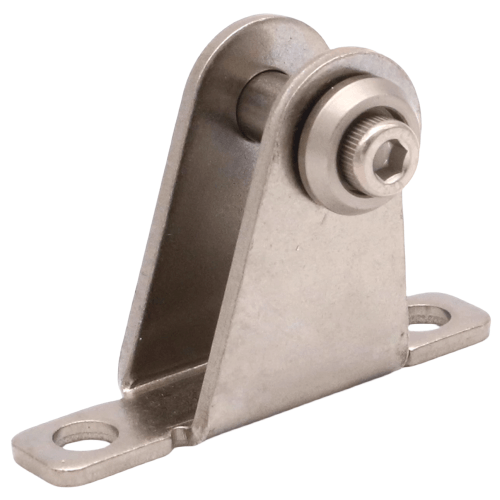

Airtac F-MF-SDB Rear Hinge Bracket Assembly Kit F-MF20SDB
AirTAC F-MF-SDB Rear Hinge Bracket Kit F-MF20SDB Technical Details
- Model: F-MF20SDB (Complete Kit)
- Type: Rear-mounted hinge bracket assembly
- Compatible cylinder bore: Ø20mm series
- Material: Anodized aluminum alloy (A6063-T5)
- Surface treatment: Black anodic oxidation (10-15μm)
- Mounting style: Dual-axis adjustable hinge
- Max lateral load capacity: 250N
- Max axial load capacity: 180N
- Operating temperature: -20°C to +80°C
- Corrosion resistance: 96hrs salt spray tested
- Weight: 0.28kg ±5% (including fasteners)
- Dimensions: 78mm(L) × 34mm(W) × 42mm(H)
- Mounting hole spacing: 40mm × 25mm (M5 threaded)
- Accessories included: M5×12 hex socket screws (4pcs), anti-vibration washers
- Compliance: RoHS 2011/65/EU
Precision-engineered mounting solution for AIRTAC SDA/SDB series cylinders, featuring 360° adjustable pivot with ±2° angular compensation. The hardened steel hinge pin (HRC 45-50) ensures smooth rotation under load, while the reinforced rib design prevents deformation during high-cycle operations. Compatible with ISO 15552 profile cylinders.
- Robotic arm joint articulation systems
- Multi-axis pneumatic positioning devices
- Automated conveyor gate mechanisms
- Food processing equipment (corrosion-resistant version available)
- Semiconductor handling robots requiring vibration damping
Installation protocol:
Apply 0.4-0.6N·m torque during screw tightening. Use thread-locking compound
(LOCTITE 243 recommended) for applications exceeding 10,000 cycles. Lubricate
hinge pin with ISO VG32-grade oil monthly in high humidity environments.
| Property | Property Value |
|---|---|
| sku | F-MF20SDB |
