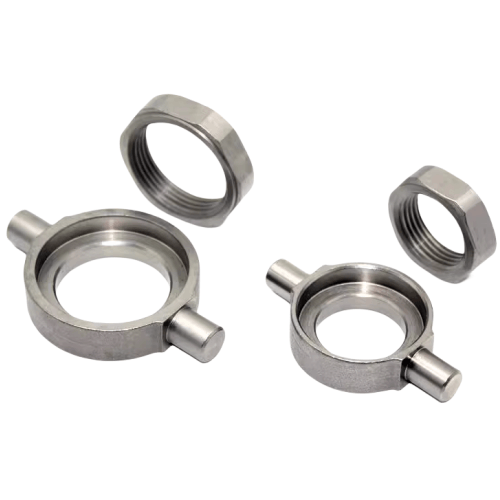

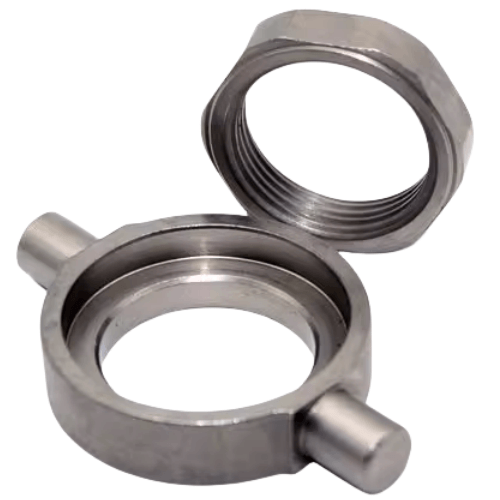

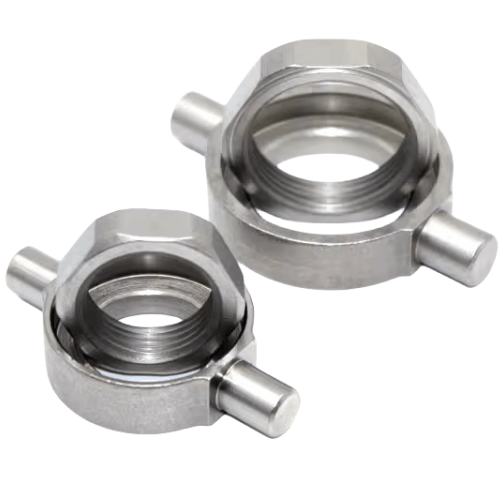

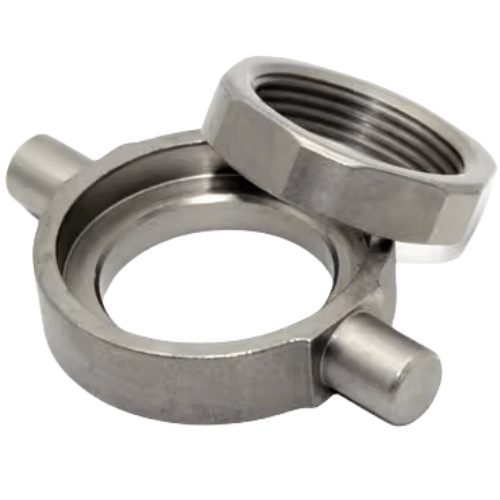

Airtac F-MF-TC End Cover Trunnion Bracket Assembly Kit F-MF20TC
$10.45
Regular price
$17.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MF20TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-MF-TC End Cap Trunnion Mounting Bracket Assembly Kit
(Engineered for precision mounting solutions, the F-MF-TC series features robust trunnion brackets integrated with end caps, designed to optimize cylinder stability and alignment in pneumatic systems. Constructed with hardened materials for extended service life and corrosion resistance.)
Installation note:
Apply 2-3Nm torque during initial alignment, then final tighten to 5.5Nm using
calibrated torque wrench. Lubricate pivot points with ISO VG32 hydraulic oil
before operation.
AirTAC F-MF-TC End Cap Trunnion Bracket Kit F-MF20TC Technical Details
- Model: F-MF20TC (Complete Bracket Assembly)
- Type: Dual-axis adjustable trunnion mount
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized (8-12μm thickness)
- Compatible cylinder series: MF/MK/MH 20mm bore
- Mounting type: Through-hole with anti-rotation key
- Thread specifications: M6×1.0 mounting screws (4 places)
- Max torque capacity: 18 N·m static / 12 N·m dynamic
- Temperature range: -20℃ to 100℃ (continuous)
- Radial load capacity: 350N (at 0.5MPa)
- Axial load capacity: 220N (at 0.5MPa)
- Weight: 450g ±2% (including fasteners)
- Dimensions: 76mm(L) × 40mm(W) × 32mm(H)
- Included hardware: M6×12 hex socket screws (Qty.4), washers
Precision-machined trunnion bracket designed for pivoting cylinder applications requiring multi-axis alignment. Features wear-resistant nickel-plated steel pivot pins and reinforced rib structure. Includes pre-installed thread locker on critical fasteners for vibration resistance.
Typical Applications:
- Rotary clamping mechanisms in CNC fixtures
- Oscillating motion systems for packaging conveyors
- Pneumatic actuator mounts in robotic welding arms
- Material handling equipment with angular adjustment
- Automated paint spraying systems
Installation note:
Apply 2-3Nm torque during initial alignment, then final tighten to 5.5Nm using
calibrated torque wrench. Lubricate pivot points with ISO VG32 hydraulic oil
before operation.
| Property | Property Value |
|---|---|
| sku | F-MF20TC |
