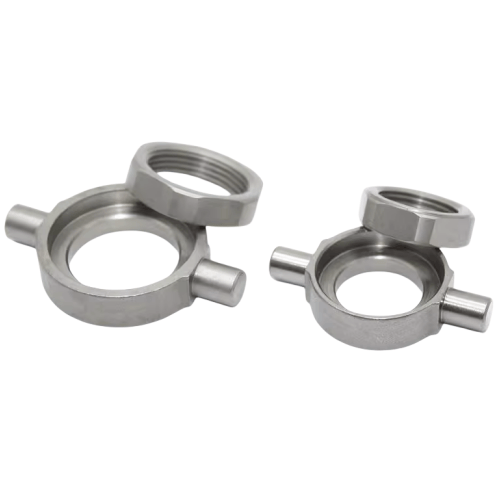

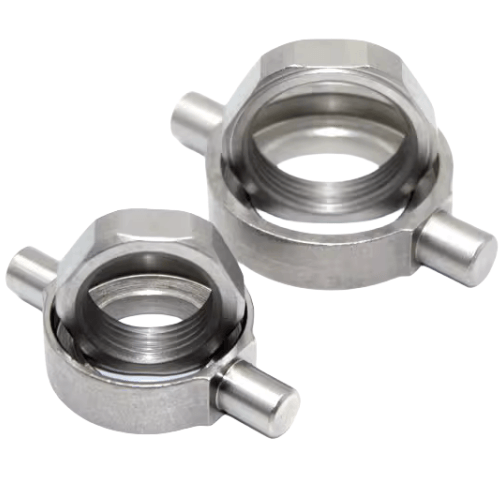

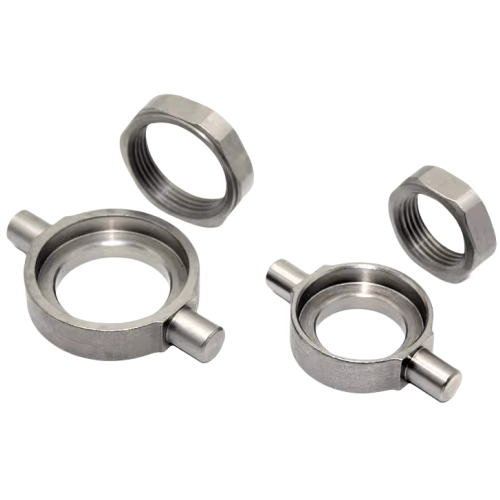

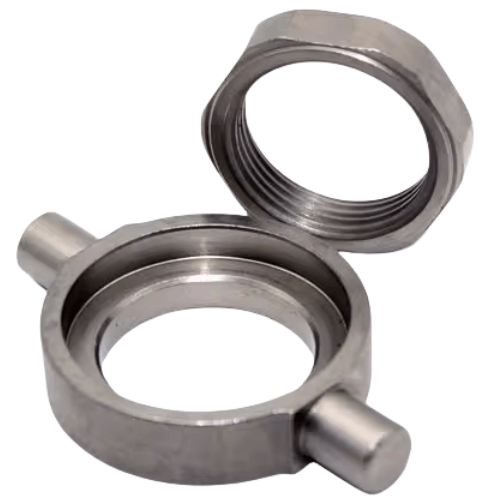

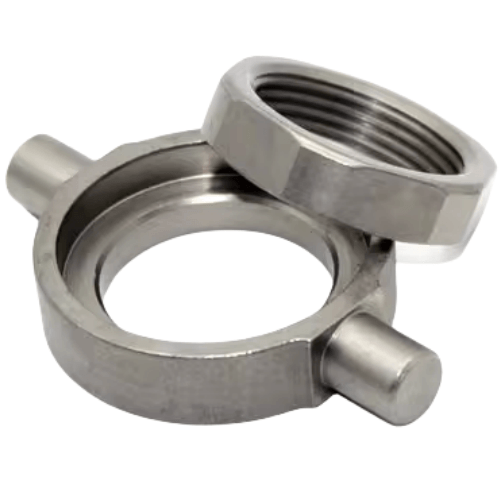

Airtac F-MF-TC End Cover Trunnion Bracket Assembly Kit F-MF40TC
AirTAC F-MF-TC End Cover Trunnion Bracket Kit F-MF40TC Specifications
- Model: F-MF40TC
- Type: Precision-engineered trunnion bracket assembly with pre-installed end cover
- Material: Aluminum alloy (AL6061-T6)
- Surface treatment: Hard anodized (12-15μm thickness)
- Dynamic load capacity: 1,500N (axial), 800N (radial)
- Static load capacity: 3,200N (axial), 1,600N (radial)
- Mounting hole pattern: 32mm × 32mm square (ISO 15552 compatible)
- Piston rod compatibility: Ø8mm to Ø25mm cylinders
- Operating temperature: -20℃ to 120℃
- Vibration resistance: ≤10G (15-2000Hz)
- Weight: 385g ±5g
- Dimensions: 72mm(L) × 52mm(W) × 40mm(H)
- Mounting screws: M6×12mm stainless steel hex socket head (included)
- Torque specification: 4.5-5.5N·m (mounting bolts)
Heavy-duty trunnion bracket kit designed for precise cylinder mounting in high-moment applications. Features CNC-machined alignment surfaces with ±0.02mm tolerance for vibration-free operation. Includes corrosion-resistant hardware and pre-lubricated bearing surfaces for immediate installation.
- Robotic welding arm positioning systems
- Automated packaging line cylinder mounts
- Plastic injection molding machine ejectors
- Automotive assembly jig fixtures
- Food processing conveyor redirect mechanisms
Installation protocol:
Use calibrated torque wrench for bolt tightening. Apply thread-locking compound to
fasteners in high-vibration environments. Verify perpendicularity with 0.05mm/m
precision level during alignment.
