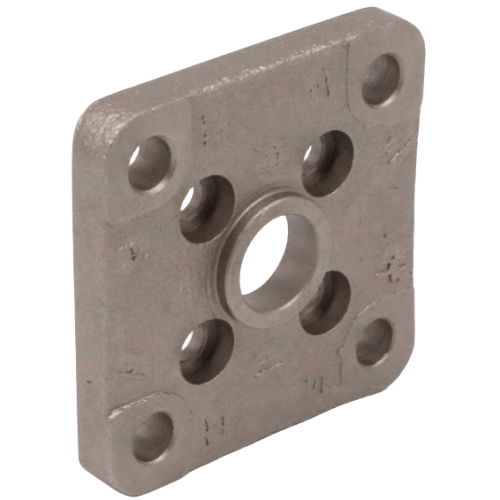

Airtac F-MG-FA Flange Mounting Plate Assembly Kit F-MG32FA
AirTAC F-MG-FA Flange Mounting Bracket Kit F-MG32FA Technical Details
- Model: F-MG32FA (Complete Kit)
- Compatible Cylinder Series: ISO 15552 (DIN/VDMA 24552) Standard
- Flange Size: 32mm Bore
- Mounting Pattern: 125mm × 125mm Square Configuration
- Bolt Hole Size: M8×1.25 Thread (4 Holes)
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Black Anodized (Military Grade MIL-A-8625)
- Weight: 480g ±2% (Including Mounting Hardware)
- Dimensions: 150mm(L) × 32mm(W) × 32mm(H)
- Temperature Range: -20℃ to 120℃
- Static Load Capacity: 1,200N (Vertical Orientation)
- Corrosion Resistance: 500hr Salt Spray Test Pass (ASTM B117)
- Vibration Resistance: 5-2000Hz, 15G Acceleration
- Protection Rating: N/A (Passive Structural Component)
Heavy-duty flange mounting solution designed for precision alignment of ISO standard pneumatic cylinders. Features CNC-machined datum surfaces (flatness within 0.02mm) and pre-installed vibration-resistant flange nuts with Loctite® adhesive. Includes stainless steel M8×25mm cap screws and alignment shims for field adjustment.
- Robotic arm joint articulation points
- Palletizing machine vertical axis mounting
- Plastic injection molding machine ejector systems
- Semiconductor wafer handling vacuum cylinder installations
- Food processing conveyor belt tensioning mechanisms
Installation Protocol:
Apply 6-8Nm torque using calibrated wrench in cross pattern sequence.
Always install anti-vibration washers between bracket and machine frame.
Perform laser alignment check after 24hrs of initial operation.
- AirTAC SC-32×50~500 Series Cylinders
- ISO 21287 Compact Cylinders (32mm Bore)
- Rodless Cylinder Carriages (MG Series)
| Property | Property Value |
|---|---|
| sku | F-MG32FA |
