Airtac F-MG-FA Flange Mounting Plate Assembly Kit F-MG50FA
$11.13
Regular price
$18.63
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MG50FA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-MG-FA Flange Mounting Plate Complete Package

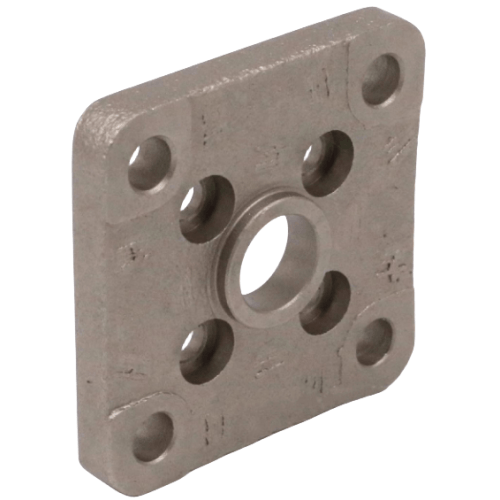

Expertly engineered for seamless integration with pneumatic systems, the AirTAC F-MG-FA Flange Mounting Plate Complete Package delivers precision alignment and robust fixation for cylinders. Featuring standardized flange dimensions and corrosion-resistant materials, this assembly ensures vibration-resistant stability and extended service life in industrial automation applications. The kit includes pre-configured mounting hardware for rapid installation, optimized to meet ISO/VDMA compliance requirements. Ideal for high-cycle machinery and compact spatial configurations.
Installation protocol:
Apply 2.5-3.0N·m torque during assembly. Use included shim washers
when mounting on uneven surfaces. Perform concentricity calibration
after installation for optimal performance.
AirTAC F-MG-FA Flange Mounting Bracket Kit F-MG50FA Technical Details
- Model: F-MG50FA
- Type: Universal flange-type mounting bracket kit
- Material: Anodized aluminum alloy (AL6061-T6)
- Bore compatibility: Designed for Φ50mm cylinders
- Mounting hole spacing: 50mm × 50mm square pattern
- Thread specifications: M6×1.0 tapped holes (4 positions)
- Surface hardness: HV 400±20
- Mounting plate thickness: 12mm±0.2
- Surface treatment: Black anodized with chromate coating
- Weight: 480g±10g
- Dimensions: 90mm(L) × 90mm(W) × 25mm(H)
- Temperature range: -20℃ to 120℃
- Corrosion resistance: 96hrs salt spray test compliant
- Compatible series: MY1, DGC, and standard ISO 15552 cylinders
Precision-machined mounting solution featuring vibration-damping design and multi-axis adjustability. Includes pre-installed Class 12.9 alloy steel mounting bolts with anti-loosening patches. The asymmetrical rib pattern enhances structural rigidity while reducing mass.
Industrial Applications:
- Robotic arm end-effector installations
- Heavy-duty material handling systems
- Plastic injection molding machine clamps
- Automated conveyor alignment fixtures
- Packaging machine vertical lift mechanisms
Installation protocol:
Apply 2.5-3.0N·m torque during assembly. Use included shim washers
when mounting on uneven surfaces. Perform concentricity calibration
after installation for optimal performance.
