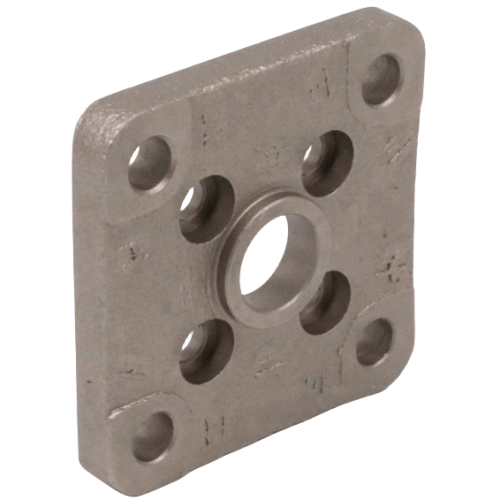

Airtac F-MG-FA Flange Mounting Plate Assembly Kit F-MG63FA
AirTAC F-MG-FA Flange Mounting Plate Kit F-MG63FA Technical Details
- Full model code: F-MG63FA
- Series: MG series compact flange plate
- Material: Anodized aluminum alloy (AL6061-T6)
- Surface hardness: HV 400±50
- Mounting hole pattern: 63mm × 63mm square (ISO 15552 compatible)
- Thread specifications: M5×0.8 mounting screws (4 places)
- Guide rod diameter: Ø16mm precision ground shaft
- Maximum cylinder compatibility: Up to CQ2 series Ø63mm bore
- Static load capacity: 1,500N radial load (at center position)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Surface treatment: Black anodized with anti-scratch coating
- Weight: 980g ±3% (including all hardware)
- Dimensions: 98mm(L) × 76mm(W) × 24mm(H)
- Included hardware: 4×M5×12 stainless steel screws, 4×DIN 125 washers
- Parallelism tolerance: ≤0.05mm/m
- Flatness: ≤0.02mm across mounting surface
Precision-engineered flange mounting solution for rigid cylinder alignment in automated systems. Features machined reference surfaces for accurate perpendicular mounting, with integrated vibration dampening through ribbed structural design. Includes corrosion-resistant fasteners for industrial environments.
- Multi-axis robotic arm joint reinforcement
- Packaging line cylinder mounting in food-grade facilities
- Plastic injection molding machine ejector mechanisms
- Semiconductor handling equipment vibration-sensitive setups
- Automated warehouse vertical lift systems
Mounting protocol:
Apply 2.5-3.0Nm torque during screw tightening using cross pattern sequence.
Use precision level during installation to maintain ≤0.1° angular alignment.
Compatible with ISO 6432/DIN ISO 15552 cylinder series.
| Property | Property Value |
|---|---|
| sku | F-MG63FA |
