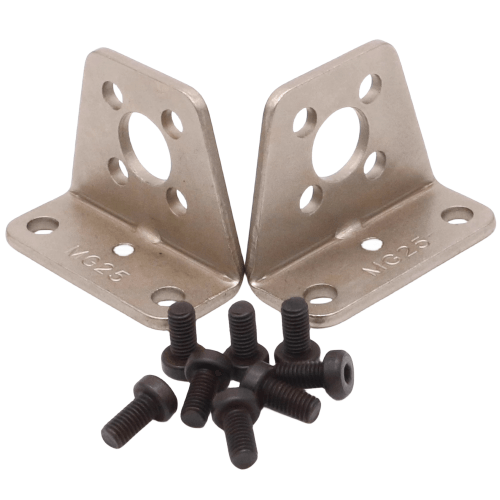

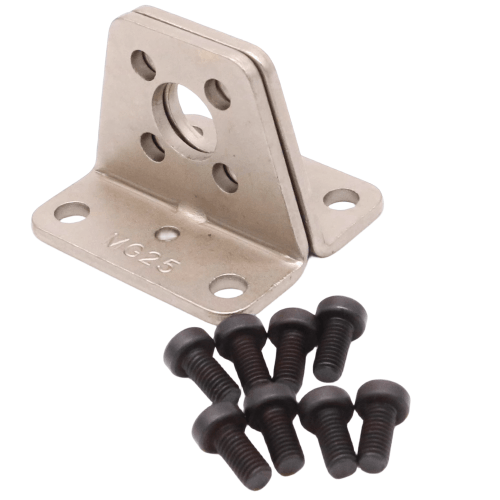

Airtac F-MG-LB Axial Retainer Assembly Kit F-MG20LB
AirTAC F-MG-LB Axial Mount Bracket Kit F-MG20LB Technical Details
- Full Model Designation: F-MG20LB (Complete Bracket Assembly Kit)
- Compatible Rail Series: SBR20/SBR20UU Linear Guide Systems
- Material: 6063-T5 Aluminum Alloy (Hard Anodized Surface)
- Mounting Hole Pattern: 40mm × 30mm Rectangular Array
- Thread Specifications: M5×0.8 Tapped Holes (Qty 4)
- Installation Torque: 2.0-2.5 N·m (For M5 Cap Screws)
- Locking Screw: M6×1.0 with Class 8.8 Strength
- Surface Hardness: HV 400±20 (Anodized Layer)
- Weight: 218g ±5g (Including All Hardware)
- Dimensions: 72mm(L) × 42mm(W) × 28mm(H)
- Thermal Tolerance: -30℃ to 120℃ (Continuous Operation)
- Corrosion Resistance: 96hrs Salt Spray Test Pass
Precision-machined axial retention system designed for SBR20 series linear motion guides, featuring dual-stage clamping force adjustment. The hardened contact surfaces ensure 0.01mm repeat positioning accuracy while the integrated dust lip prevents particulate ingress in harsh environments.
- CNC router Z-axis carriage stabilization
- 3D printer gantry alignment systems
- Automated optical inspection (AOI) equipment
- Laser engraver linear motion assemblies
- Semiconductor wafer handling robots
Mounting Protocol:
Apply 3-in-1 thread locker (medium strength) on fasteners.
Torque sequence: Pre-tighten diagonally opposite screws to 1.5N·m,
then final torque to 2.3N·m in two equal steps.
Validate parallelism with 0.02mm/m tolerance using dial indicator.
| Property | Property Value |
|---|---|
| sku | F-MG20LB |
