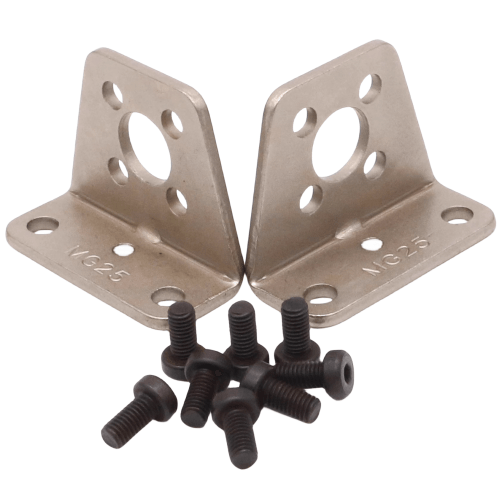

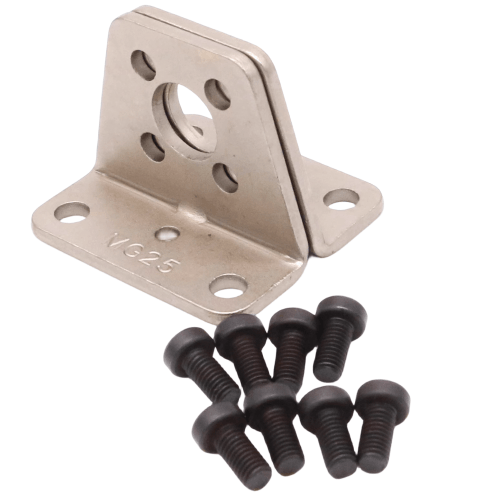

Airtac F-MG-LB Axial Retainer Assembly Kit F-MG25LB
AirTAC F-MG-LB Series Axial Fixing Bracket Kit - F-MG25LB Detailed Specifications
- Model Code: F-MG25LB (Complete Kit)
- Bracket Type: Double-sided axial locking for linear shafts
- Shaft Compatibility: Ø25mm (+0/-0.02mm tolerance)
- Material: AL6061-T6 aluminum alloy body
- Surface Treatment: Hard anodized (25-30μm thickness)
- Fastener Specs: M6×12mm stainless steel screws (Class 12.9)
- Installation Torque: 5-6 Nm (precisely calibrated for deformation control)
- Radial Load Capacity: Max 1,200N static / 800N dynamic
- Axial Load Capacity: 2,500N (with proper shaft alignment)
- Weight: 450g ±5% (including all mounting hardware)
- Dimensions: 70mm(L) × 50mm(W) × 40mm(H) (compact flange design)
- Operating Temp Range: -20°C to 120°C (no performance degradation)
- Vibration Resistance: 5-2000Hz frequency, 1.5mm amplitude
Precision-engineered shaft fixation solution with dual anti-rotation pins and multi-point stress distribution. Features diamond-knurled contact surfaces (Ra 0.8μm finish) for zero-slip performance under high moment loads. Includes pre-loaded wave washers for vibration compensation and corrosion-resistant SHC screws.
- Linear guide end support in CNC router systems
- Precision alignment in semiconductor wafer handling robots
- High-cycle packaging machine actuator mounts
- Medical imaging equipment sliding mechanisms
- Automated warehouse shuttle carriage guides
Mounting Protocol:
Apply 2-3μm molybdenum disulfide coating on shaft contact area before installation.
Use alternating torque sequence (25% → 50% → 100% final torque) for even load distribution.
Re-torque after 48hrs of initial operation.
