Airtac F-MG-SDB Hinged Bracket Assembly F-MG20SDB
$5.54
Regular price
$13.04
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MG20SDB
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Pneumatic Cylinder Accessories
Brand: AIRTAC
Series: F-MG-SDB

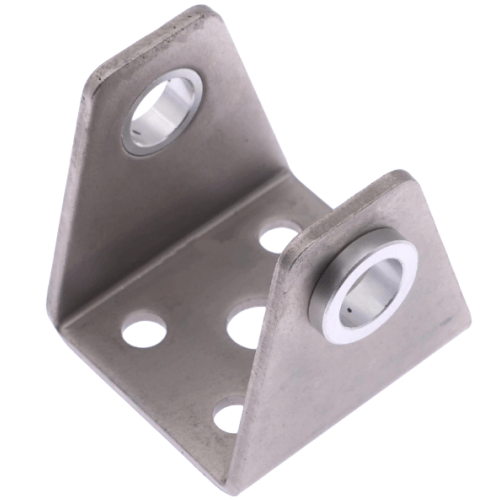

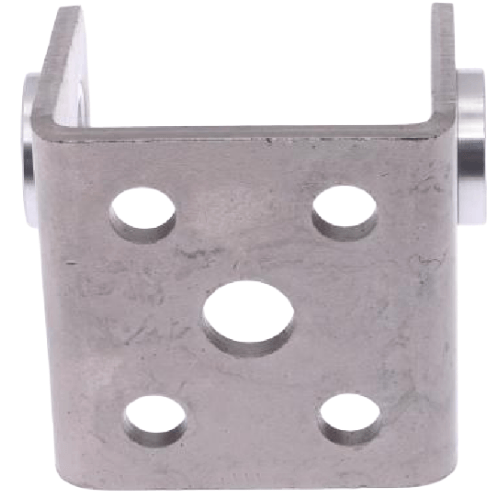

F-MG-SDB Swivel Bracket Mounting Kit - Complete Assembly for Pneumatic Cylinder Systems
AIRTAC's F-MG-SDB series features a precision-engineered swivel bracket mounting kit designed for rigid yet adjustable fixation of pneumatic cylinders. This pre-assembled unit incorporates high-grade alloy components with anti-corrosion surface treatment, ensuring stable alignment and vibration resistance in dynamic industrial environments. Compatible with ISO/VDMA standard cylinder profiles, the kit includes integrated pivot bearings for ±5° axial compensation and reinforced mounting holes to withstand high torsional loads. Ideal for automated machinery requiring precision positioning and maintenance-free operation.
Installation protocol:
Torque mounting bolts to 4.5N·m ±10% using calibrated tool.
Apply 15-20μm silicone grease (Molykote EM-30L recommended)
to pivot surfaces before assembly. Avoid galvanic corrosion
by using isolation washers when mating with steel components.
AirTAC F-MG-SDB Hinge Bracket Kit F-MG20SDB Technical Details
- Full model designation: F-MG20SDB
- Bracket type: Reinforced swivel clevis with integrated safety lock
- Material: Aluminum alloy ADC12 (ISO AlSi10Mg)
- Compatible cylinder bore: Φ20mm (optimized for MGPM/MGPQ series)
- Mounting hole spacing: 30±0.2mm (vertical) × 22±0.1mm (horizontal)
- Surface treatment: Hard anodized (25-30μm thickness)
- Corrosion resistance: 500hr salt spray test compliant
- Max torque capacity: 18N·m static / 12N·m dynamic
- Operating temperature: -40℃ to 120℃ (lubricant dependent)
- Weight: 248g ±3% (including fasteners)
- Dimensions: 78mm(L) × 42mm(W) × 24mm(H)
- Hardware included: M5×16 flange bolts (Class 8.8) + NYLOK nuts
Precision-machined pivot bracket with dual bearing surfaces for smooth articulation in high-cycle applications. Features anti-backlash shim adjustment (0.1-0.3mm range) and wear-resistant pivot pins (HRC 58-62). Includes pre-applied molybdenum disulfide coating on sliding surfaces.
Implementation Scenarios:
- Robotic arm wrist joint articulation systems
- Rotary clamp mechanisms in automotive welding fixtures
- Oscillating conveyor drives in food processing lines
- Precision angular adjustment in semiconductor handling robots
- Pneumatic actuator mounting for cleanroom automation
Installation protocol:
Torque mounting bolts to 4.5N·m ±10% using calibrated tool.
Apply 15-20μm silicone grease (Molykote EM-30L recommended)
to pivot surfaces before assembly. Avoid galvanic corrosion
by using isolation washers when mating with steel components.
| Property | Property Value |
|---|---|
| sku | F-MG20SDB |
