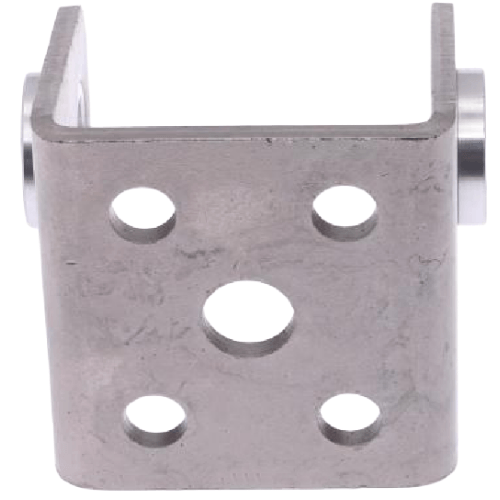

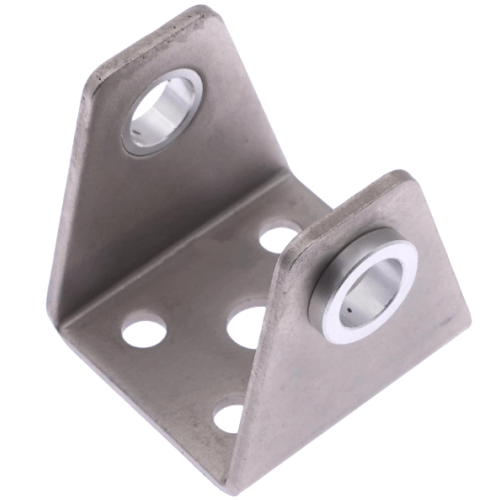

Airtac F-MG-SDB Hinged Bracket Assembly F-MG50SDB
$10.45
Regular price
$17.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MG50SDB
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Pneumatic Cylinder Accessories
Brand: AIRTAC
Series: F-MG-SDB
F-MG-SDB Swivel Bracket Mounting Kit - Complete Assembly for Pneumatic Cylinder Systems
AIRTAC's F-MG-SDB series features a precision-engineered swivel bracket mounting kit designed for rigid yet adjustable fixation of pneumatic cylinders. This pre-assembled unit incorporates high-grade alloy components with anti-corrosion surface treatment, ensuring stable alignment and vibration resistance in dynamic industrial environments. Compatible with ISO/VDMA standard cylinder profiles, the kit includes integrated pivot bearings for ±5° axial compensation and reinforced mounting holes to withstand high torsional loads. Ideal for automated machinery requiring precision positioning and maintenance-free operation.
Mounting protocol:
Apply 25-30N·m torque during installation using calibrated tools.
Lubricate pivot points with ISO VG32 hydraulic oil monthly.
Avoid side-impact forces exceeding 500N during operation.
AirTAC F-MG-SDB Hinge Bracket Assembly F-MG50SDB Technical Specifications
- Full model designation: F-MG50SDB
- Bracket type: Reinforced hinge mounting bracket with integrated shock absorption
- Material: Aluminum alloy ADC12 (JIS H5302 compliant)
- Surface treatment: Black anodized (8-12μm thickness)
- Compatible cylinder series: MGPM/MGPQ/MGPS 50mm bore
- Mounting hole spacing: 60±0.1mm (horizontal) × 40±0.1mm (vertical)
- Thread specifications: M6×1.0 mounting threads (4 places)
- Dynamic load capacity: 1,200N radial / 800N axial
- Static load capacity: 2,500N radial / 1,800N axial
- Weight: 385g ±2%
- Dimensions: 78mm(L) × 52mm(W) × 34mm(H)
- Operating temperature: -40℃ to 120℃
- Vibration resistance: 10-2000Hz, 15m/s² max
- Corrosion resistance: 96hrs salt spray test passed
Heavy-duty pivot bracket engineered for precision alignment of mid-sized pneumatic cylinders. Features vibration-damping rubber inserts (Shore A70) and CNC-machined mounting surfaces (Ra1.6 finish). Includes pre-installed Class 10.9 mounting hardware with anti-loosening patches.
Installation Scenarios:
- Robotic welding arm articulation points
- Automated conveyor sorting systems
- Packaging machine rotating mechanisms
- Textile machinery with oscillating motions
- Agricultural equipment requiring weather-resistant joints
Mounting protocol:
Apply 25-30N·m torque during installation using calibrated tools.
Lubricate pivot points with ISO VG32 hydraulic oil monthly.
Avoid side-impact forces exceeding 500N during operation.
| Property | Property Value |
|---|---|
| sku | F-MG50SDB |
