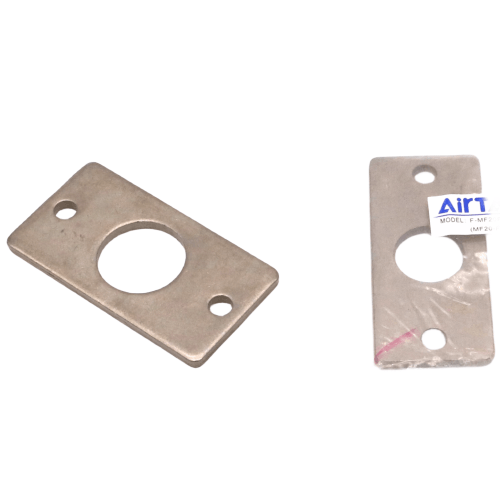

Airtac F-MI-FA Front Flange Mounting Plate Assembly Kit F-MI8FA
AirTAC F-MI-FA Front Flange Mounting Plate Kit F-MI8FA Technical Details
- Model: F-MI8FA
- Type: Pre-assembled front flange mounting plate kit
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface treatment: Black oxidation (MIL-A-8625 Type II compliant)
- Weight: 328g ±5g
- Dimensions: 78mm(L) × 54mm(W) × 21mm(H)
- Mounting hole pattern: 60mm × 30mm rectangular array
- Thread specifications: M6×1.0 through-holes (4 places)
- Compatible cylinder series: MI series standard cylinders
- Operating temperature: -20℃ to 100℃
- Surface hardness: HV 80-100
- Corrosion resistance: 96hr salt spray test passed
- Rail compatibility: HSR15/20/25 linear guide systems
- Mounting torque: 3.5-4.2N·m (using Class 8.8 fasteners)
Precision-machined mounting solution designed for rigid fixation of MI series pneumatic cylinders. Features vibration-damping design with 0.02mm positional tolerance, ensuring stable alignment in high-cycle applications. Includes pre-installed Class 10.9 mounting screws and anti-loosening washers.
- Robotic arm joint articulation systems
- CNC machine tool pneumatic clamping units
- Automated assembly line positioning fixtures
- Packaging machinery vertical lift mechanisms
- Semiconductor handling equipment Z-axis actuators
Installation protocol:
Apply 2-3Nm torque in crisscross pattern during fastening. Use thread locker (LOCTITE 243 recommended)
for applications exceeding 800rpm vibration frequency. Maintain 0.5mm clearance between plate and guide rail end stops.
