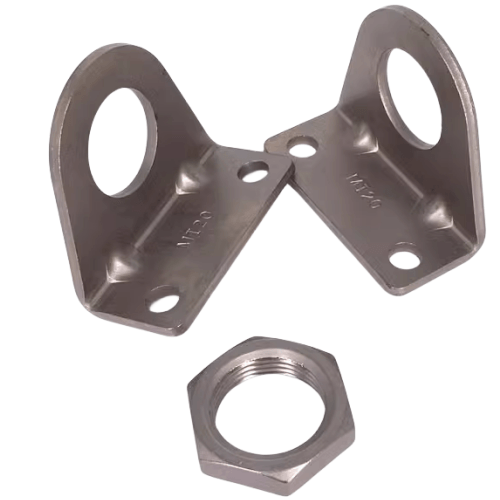

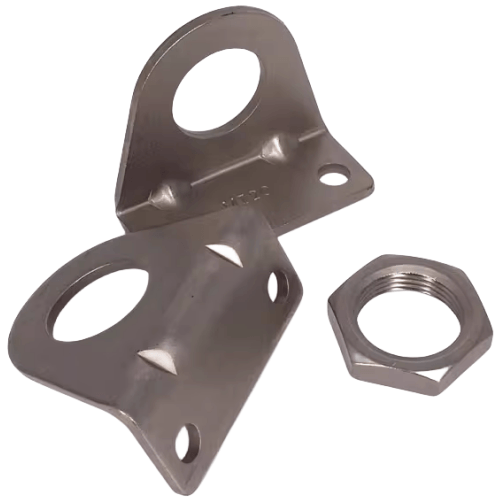

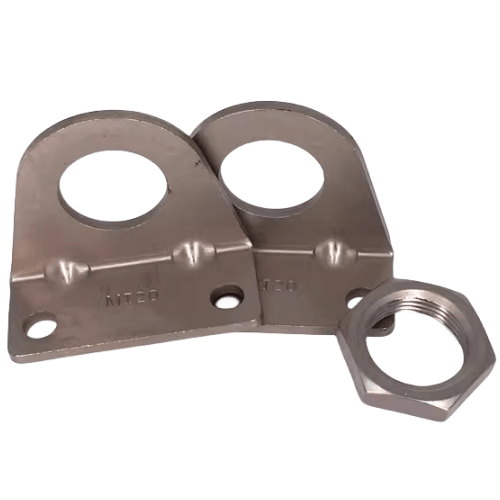

Airtac F-MI-LB Axial Fixing Bracket Assembly Kit F-MI10LB
AirTAC F-MI-LB Axial Mounting Bracket Kit F-MI10LB Technical Details
- Full model designation: F-MI10LB (Complete assembly kit)
- Bracket type: Precision-machined axial alignment fixture
- Material: 6063-T5 aluminum alloy with hard anodized finish
- Compatible rail: HGH15CA/HGW15CA linear guide series
- Weight: 228g ±5g (including all mounting hardware)
- Dimensions: 62mm(L) × 38mm(W) × 24mm(H)
- Mounting hole spacing: 30mm (center-to-center)
- Fastener specifications: M4×8mm stainless steel hex socket screws (4 pcs included)
- Clamping force: 120N·m maximum tightening torque
- Surface hardness: HV400-450
- Temperature resistance: -30℃ to 120℃ (constant use), 150℃ peak
- Surface treatment: Sandblasting + Black anodizing (MIL-A-8625 Type III)
- Runout tolerance: ≤0.02mm perpendicularity
Precision-engineered mounting solution for linear motion systems, featuring dual-contact surfaces for enhanced vibration damping. The F-MI10LB kit includes pre-loaded wave washers to maintain consistent clamping force, with chemical-resistant coating for harsh environments. Requires ISO 4762 grade 12.9 fasteners for optimal performance.
- High-speed CNC router Z-axis reinforcement
- Automated optical inspection (AOI) equipment alignment
- Robotic arm joint stabilization in cleanroom environments
- Precision grinding machine way protection
- 3D printer gantry squareness adjustment
Mounting protocol:
Degrease contact surfaces with isopropyl alcohol prior to assembly.
Tighten diagonally in 3 stages (30% → 70% → 100% torque) using
calibrated torque wrench. Verify parallelism with 0.01mm dial indicator.
| Property | Property Value |
|---|---|
| sku | F-MI10LB |
