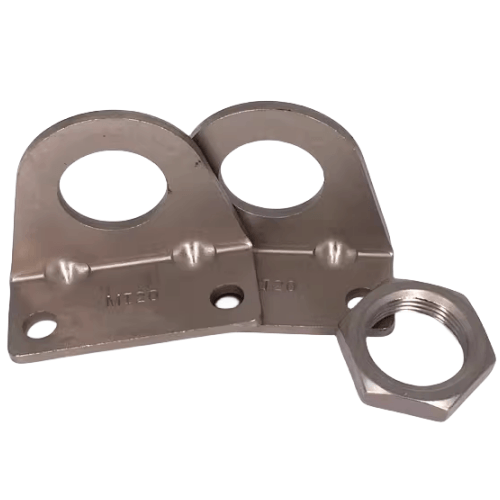

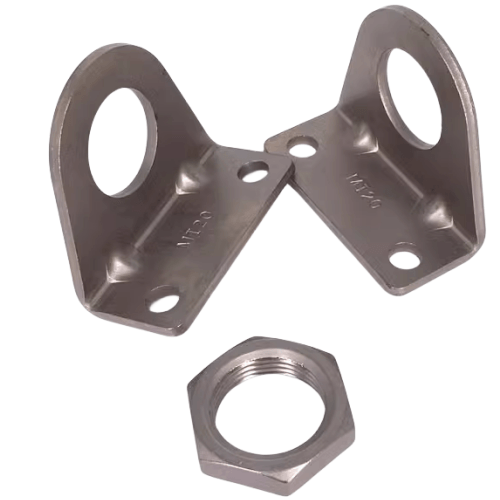

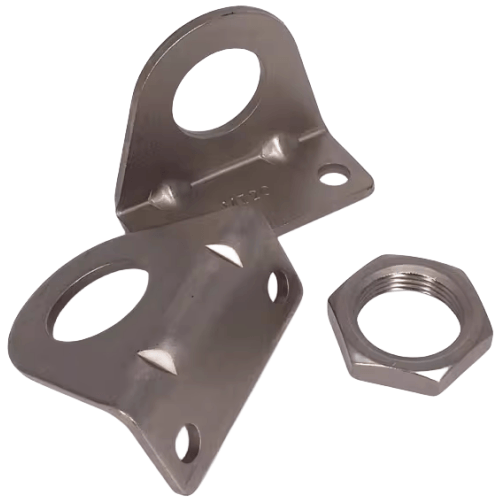

Airtac F-MI-LB Axial Fixing Bracket Assembly Kit F-MI20LB
AirTAC F-MI-LB Series Axial Fixing Bracket Kit F-MI20LB Technical Details
- Model: F-MI20LB (Complete Bracket Kit)
- Type: Precision-machined axial alignment bracket
- Compatible rail model: HGH20CA linear guide
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized oxidation (Matte black, 15-20μm thickness)
- Installation method: Dual-position mechanical lock + M4 screw fixation
- Weight: 347g ±5g (including all mounting hardware)
- Dimensions: 60mm(L) × 42mm(W) × 25mm(H)
- Mounting hole spacing: 50mm ±0.1mm (longitudinal), 35mm ±0.1mm (lateral)
- Max load capacity: 1,200N static / 800N dynamic
- Operating temperature: -30℃ to 100℃ (lubricant dependent)
- Vibration resistance: 5-2000Hz, 49m/s² max
- Corrosion resistance: 96hrs salt spray test passed
High-precision CNC-machined fixing solution for linear motion systems, featuring dual anti-loosening mechanisms (elastic deformation locking + mechanical screw fixation). The anodized surface provides enhanced wear resistance and prevents galvanic corrosion when paired with stainless steel components. Includes pre-installed shock-absorbing washers and alignment pins for vibration-prone environments.
- High-speed pick-and-place robot Z-axis reinforcement
- Multi-axis CNC machine tool sliding unit stabilization
- Semiconductor wafer handling equipment linear guide fixation
- Automated optical inspection (AOI) system precision alignment
- Lithium battery production line conveyor rail anchoring
Installation protocol:
Always use torque-controlled tools (recommended 1.2N·m ±0.2N·m for M4 screws)
and apply MOBILITH SHC 100 grease on sliding surfaces. Perform parallel alignment
verification with 0.02mm precision level within 24hrs after installation.
- Optimal pairing: AirTAC MAL20 series cylinders
- Requires HGH20CA/HGW20CC rails (sold separately)
- Use with AS3308-20 shock absorbers for high-cycle applications
| Property | Property Value |
|---|---|
| sku | F-MI20LB |
