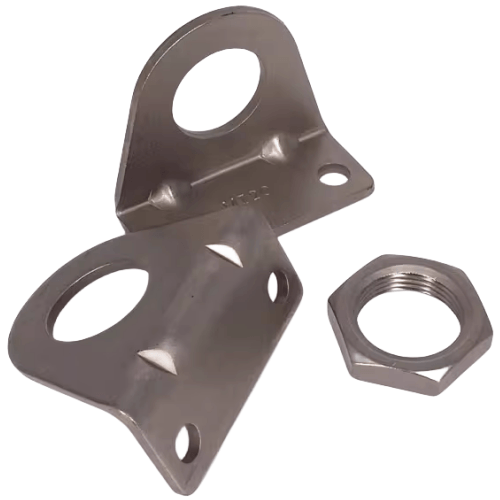

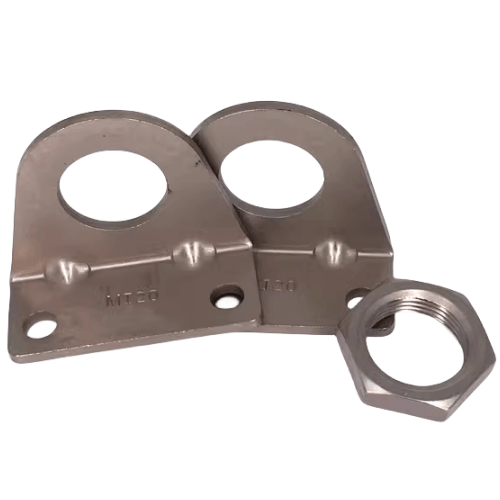

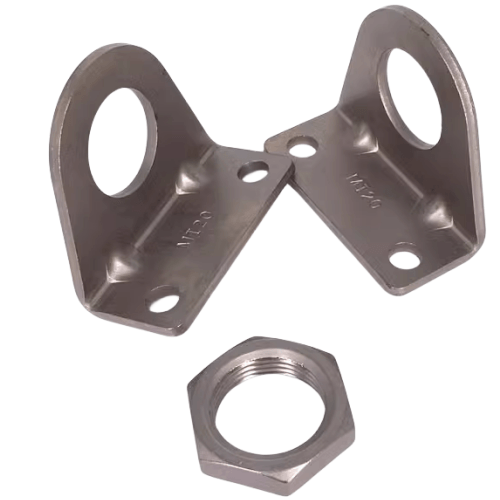

Airtac F-MI-LB Axial Fixing Bracket Assembly Kit F-MI32LB
AirTAC F-MI-LB Series Axial Fixing Bracket Kit F-MI32LB Technical Details
- Model: F-MI32LB (Complete Kit)
- Type: Linear Bracket Support Unit with Pre-mounted LB Series Bearing
- Compatible Shaft Diameter: φ32mm (±0.01mm tolerance)
- Material: Aluminum Allodyne-treated aluminum body, CR-Steel shafts
- Mounting Style: Through-hole (4x M6 screw holes)
- Static Load Capacity: 2,500N (axial direction)
- Dynamic Load Capacity: 1,800N (axial direction)
- Operating Temperature: -20°C to 80°C
- Surface Treatment: Black anodized (MIL-A-8625 Type III)
- Weight: 540g ±2% (including bearing and hardware)
- Dimensions: 122mm(L) × 42mm(W) × 38mm(H)
- Runout Tolerance: ≤0.03mm
- Hardware Included: 4x Class 12.9 M6×20mm Socket Head Cap Screws
Precision-machined axial retention system designed for LB series linear bearings, featuring integrated anti-rotation mechanism and vibration-damping properties. The kit includes pre-aligned components for immediate installation, with hardened contact surfaces (HRC 58-62) for extended wear resistance. Requires minimal lubrication - compatible with ISO VG32 hydraulic oil.
- Linear guide end-stop positioning in CNC routers
- 3D printer Z-axis stabilization systems
- Automated packaging machine slide units
- Semiconductor wafer handling robotics
- Medical imaging equipment sliding mechanisms
Installation Protocol:
Clean shaft surface with IPA before assembly. Torque screws to 8.8-10.2N·m
using cross-pattern tightening sequence. Verify parallel alignment within
0.05mm/m using dial indicator.
- LB32UU linear bearings (pre-installed)
- HGR32 series linear rails
- MISUMI MFZ12 series shafts
- THK SNS32 carriage blocks
| Property | Property Value |
|---|---|
| sku | F-MI32LB |
