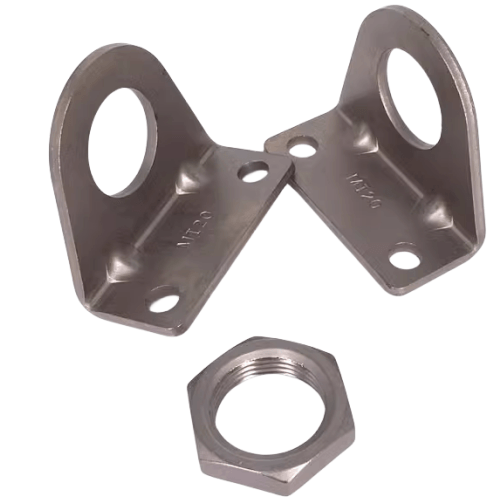

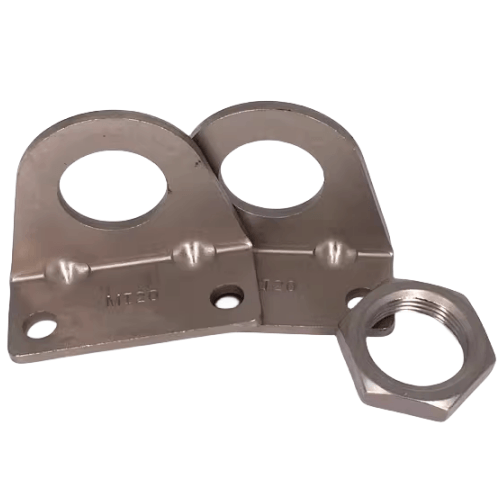

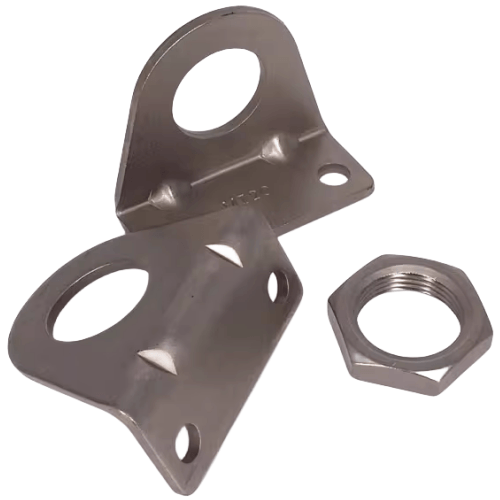

Airtac F-MI-LB Axial Fixing Bracket Assembly Kit F-MI40LB
AirTAC F-MI-LB Axial Fixing Bracket Kit F-MI40LB Technical Details
- Complete model designation: F-MI40LB
- Material: Aluminum alloy 6063-T5 (anodized surface treatment)
- Rail compatibility: HSR/EG/QR series linear guides, size 40
- Axial load capacity: Max 12,500N static load
- Clamping force: 18-22 N·m (recommended tightening torque)
- Mounting hole pattern: 60mm × 38mm (longitudinal × transverse)
- Surface hardness: HV 0.3/15 ≥ 150
- Weight: 0.87kg ±2%
- Dimensions: 72mm(L) × 45mm(W) × 28mm(H)
- Operating temperature: -20°C to 100°C (dry environment)
- Corrosion resistance: 96hr salt spray test passed
- Included components: Bracket body ×1, M8×25 SHCS ×4, spring washer ×4, flat washer ×4
Precision-machined axial retention solution for linear motion systems, featuring dual-plane contact surfaces for enhanced alignment stability. The wedge-lock design enables zero-backlash adjustment through controlled deformation during bolt tightening. Compatible with ISO 12090-2 standard rail systems.
- Multi-axis CNC machining center column reinforcement
- Automated warehouse shuttle X-Y axis synchronization
- Semiconductor wafer handling robot base stabilization
- High-speed packaging line servo actuator mounting
Mounting protocol:
Apply 25-30% of final torque in cross pattern first, then reach full torque in two equal steps.
Use 0.02mm feeler gauge to verify full surface contact post-installation.
| Property | Property Value |
|---|---|
| sku | F-MI40LB |
