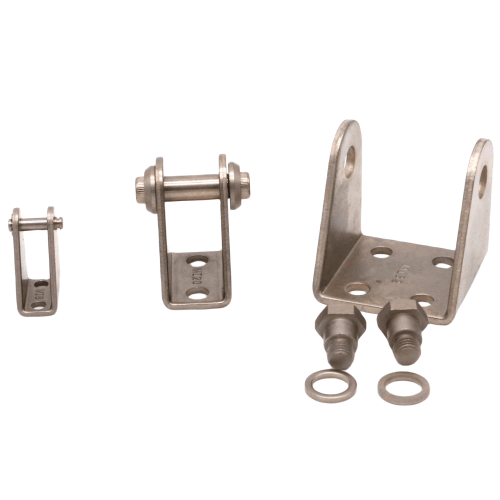

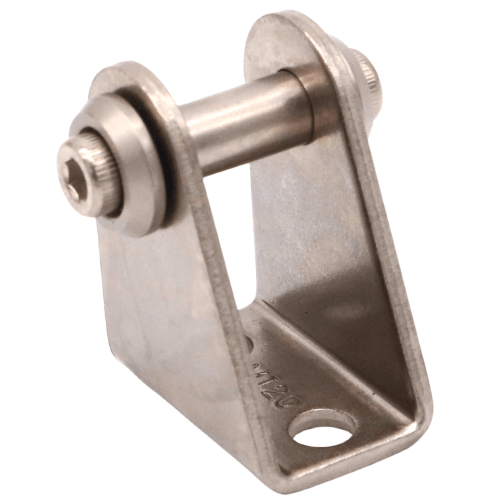

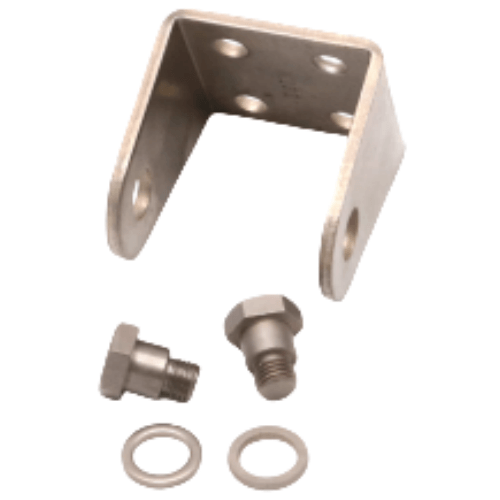

Airtac F-MI-SDB Rear Hinge Bracket Assembly F-MI12SDB
AirTAC F-MI-SDB Rear-Hinged Mounting Bracket Kit F-MI12SDB Specifications
- Model: F-MI12SDB
- Type: Precision rear-hinged bracket assembly kit
- Material: Stainless steel base + aluminum alloy hinge
- Compatible rail type: MISUMI/THK-style linear guides
- Mounting method: Dual M4 screw fixation + hinge lock
- Surface treatment: Nickel-plated (base) / Anodized (hinge)
- Max load capacity: 12kg vertical / 8kg horizontal
- Operating temperature: -30℃ to 120℃
- Vibration resistance: 5-19Hz/1.5mm, 19-500Hz/30m/s²
- Protection rating: IP54 (assembled state)
- Weight: 218g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 28mm(H)
- Torque specification: 0.8-1.2N·m (mounting screws)
Modular mounting solution featuring micro-adjustment capability (±1.5° angular compensation) through its precision hinge mechanism. The zinc-nickel composite coating provides corrosion resistance in humid environments, while the laser-etched alignment marks enable precise component positioning. Includes vibration-damping rubber inserts for sensitive equipment installations.
- Linear actuator end-stop mounting
- Sensor cluster positioning in CNC machines
- Modular pneumatic component arrays
- Collaborative robot accessory mounting
- Vision system camera angle adjustment
Installation protocol:
Always pre-load hinge mechanism with supplied alignment jig before final tightening.
Requires 15mm clearance behind mounting surface for full hinge articulation.
Re-torque after 50 operational cycles.
| Property | Property Value |
|---|---|
| sku | F-MI12SDB |
