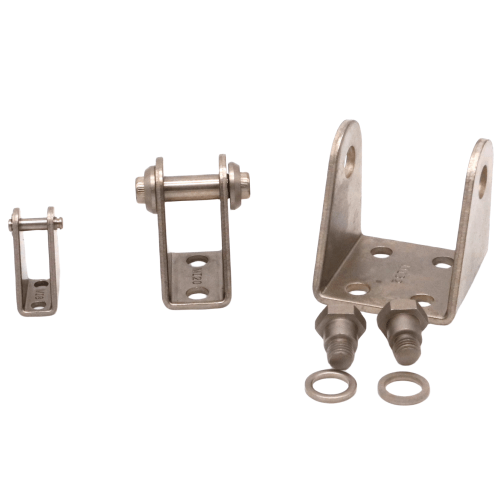

Airtac F-MI-SDB Rear Hinge Bracket Assembly F-MI20SDB
AirTAC F-MI-SDB Rear Hinge Bracket Kit (F-MI20SDB) Technical Details
- Full model designation: F-MI20SDB (Complete assembly kit)
- Compatible cylinder series: MI series (Specifically designed for MI20 cylinders)
- Material: Aluminum alloy AL6061-T6 (hard anodized surface treatment)
- Surface finish: Matte black anodized (MIL-A-8625 Type III compliant)
- Installation type: Rear hinge pivot mounting
- Mounting hole spacing: 40mm ±0.1mm (dual M5 threaded holes)
- Rotation angle: ±5° self-aligning capability
- Load capacity:
- Dynamic: 120N @ 0.5MPa
- Static: 350N maximum
- Operating temperature: -20℃ to +80℃ (continuous use)
- Weight: 250g ±10g (including all hardware)
- Dimensions: 62mm(L) × 34mm(W) × 24mm(H) (excluding protrusions)

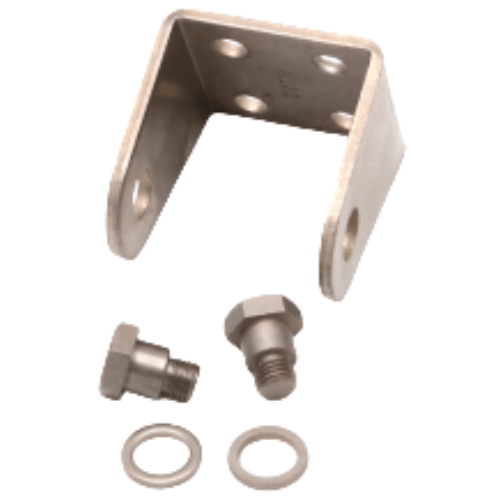

- Hardware included:
- 2× M5×16mm stainless steel cap screws (A2-70 grade)
- 4× Anti-vibration washers (NBR rubber)

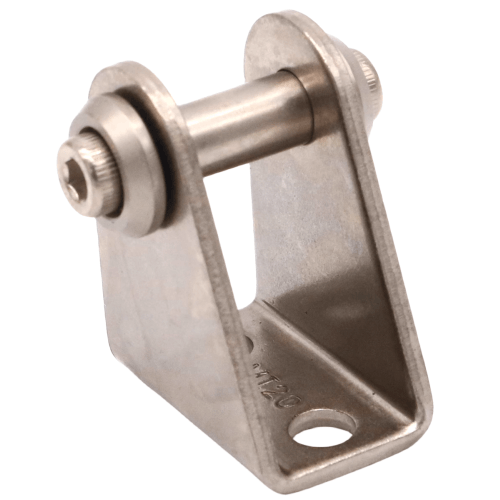

- 1× Precision pivot pin (Case-hardened steel, HRC 45-50)
Engineered for precision alignment in articulated pneumatic systems, this reinforced bracket assembly enables smooth angular compensation during cylinder stroke movements. The anodized aluminum construction provides excellent corrosion resistance in humid environments while maintaining thermal stability. Features dual-stage wear prevention with integrated lubricant reservoirs in pivot points.
- Robotic arm joint articulation systems
- 90° stroke conversion mechanisms in packaging lines
- Oscillating conveyor gate actuators
- Automated welding jig positioners
- Pharmaceutical tablet press ejection systems
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) to mounting screws.
Torque M5 fasteners to 4.5-5.0 N·m using calibrated tool. Perform alignment verification
through three full stroke cycles before final tightening.
| Property | Property Value |
|---|---|
| sku | F-MI20SDB |
