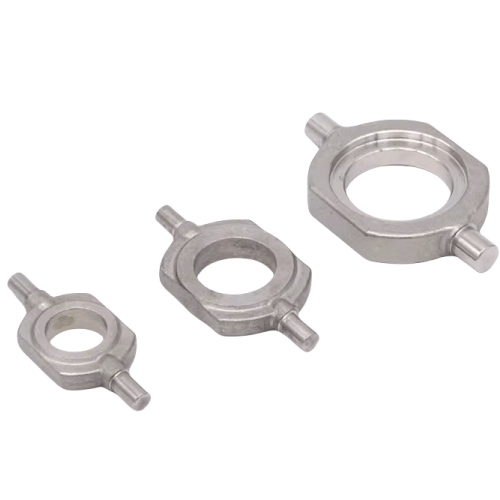

Airtac F-MI-TC End Cover Trunnion Bracket Assembly Kit F-MI20TC
AirTAC F-MI-TC End Cover Trunnion Bracket Kit F-MI20TC Specifications
- Model: F-MI20TC
- Type: Trunnion bracket with end cover (pre-assembled kit)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black) + anti-rust oil coating
- Static load capacity: 1,500N (radial direction)
- Dynamic load capacity: 800N (axial direction)
- Mounting hole spacing: 30±0.2mm (center-to-center)
- Bolt hole size: M6×1.0 (4 holes)
- Pivot pin diameter: φ10h7
- Operating temperature: -20℃ to 100℃
- Weight: 0.35kg ±2%
- Dimensions: 50mm(L) × 40mm(W) × 25mm(H)
- Compatibility: Designed for MI series 20mm bore cylinders
- Vibration resistance: ≤10Hz frequency, 1.5mm amplitude
Precision-engineered mounting solution for pneumatic cylinder applications requiring angular movement. Features dual-bearing support structure with hardened steel pivot pins (HRC 58-62) for reduced wear. Includes pre-lubricated bronze bushings and stainless steel fasteners (SUS304) for corrosion resistance.
- Rotary clamping mechanisms in CNC fixtures
- Material handling robot end-effector joints
- 90° swing cylinder installations
- Packaging machine lid closing mechanisms
- Automated welding positioner mounts
Installation protocol:
Apply 20-25N·m torque to M6 mounting bolts using cross-tightening sequence.
Lubricate pivot points with ISO VG32 hydraulic oil before operation.
Max angular deflection: ±5° from neutral position.
| Property | Property Value |
|---|---|
| sku | F-MI20TC |
