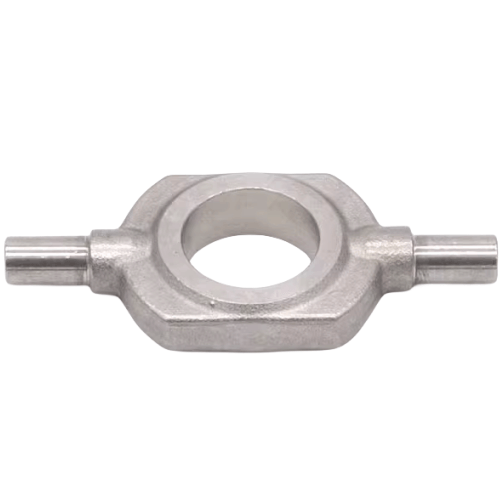

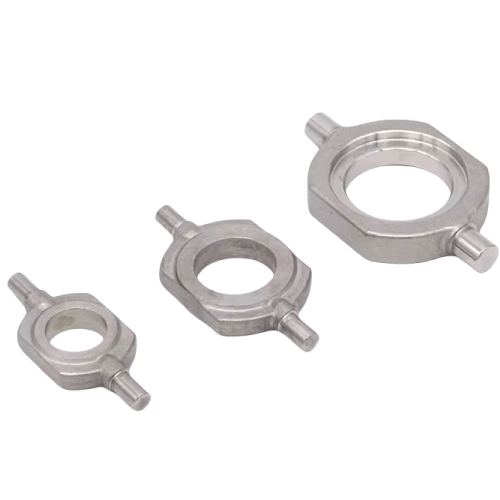

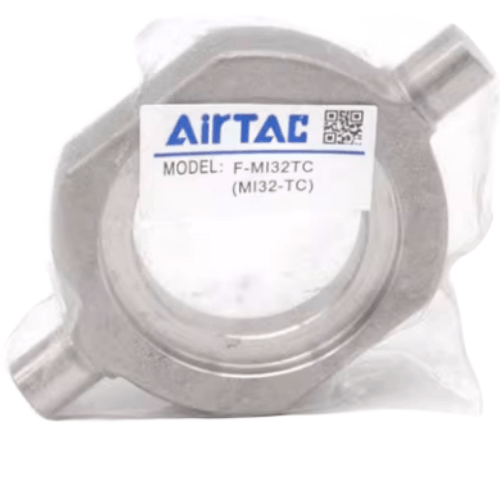

Airtac F-MI-TC End Cover Trunnion Bracket Assembly Kit F-MI32TC
AirTAC F-MI-TC End Cover Trunnion Bracket Kit F-MI32TC Technical Specifications
- Model: F-MI32TC
- Type: Complete trunnion bracket assembly with end cover
- Material: Aluminum alloy ADC12 (anodized finish)
- Surface treatment: Black oxidation + electrophoretic coating
- Mounting type: Dual-axis trunnion mounting
- Compatible cylinder bore: Φ32mm series
- Maximum load capacity: 360N radial / 180N axial
- Bearing type: Double-row angular contact ball bearings
- Operating temperature: -20℃ to 100℃
- Mounting torque: 4.5-5.5 N·m (M6 screws)
- Weight: ~500g (complete kit)
- Dimensions: 72mm(L) × 54mm(W) × 32mm(H)
- Corrosion resistance: 96hrs salt spray test compliant
Precision-engineered mounting solution for linear cylinder systems, featuring integrated bearing structure for smooth rotational movement. The hardened pivot shafts (HRC 58-62) ensure wear resistance in high-cycle applications. Includes pre-assembled components with corrosion-resistant fasteners.
- Rotary clamping mechanisms in automation lines
- Precision angle adjustment for robotic welding arms
- Material handling equipment with oscillating motion
- Packaging machine rotating end effectors
- Semiconductor wafer transfer systems
Installation note:
Apply lithium-based grease to pivot points during assembly.
Use torque wrench for screw tightening and verify parallel alignment
(±0.2mm tolerance) between mounting surfaces. Avoid overtightening
which may deform bearing raceways.
