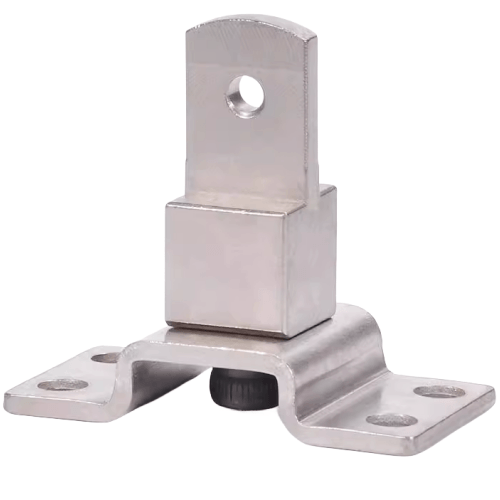

Airtac F-PB-CJ Rear Swing Bracket Assembly Kit F-PB12CJ
AirTAC F-PB-CJ Rear Swing Bracket Kit F-PB12CJ Technical Details
- Model: F-PB12CJ (Complete Bracket Package)
- Material: Precision-machined aluminum alloy 6063-T5
- Surface treatment: Hard anodized (15-20μm thickness)
- Compatible cylinder bore: Φ12mm (Optimized for ADVC/ADVU series)
- Max load capacity: 85N radial / 120N axial
- Mounting hole pattern: 32mm × 16mm rectangular array
- Fastener specs: M5×0.8 stainless steel screws (ISO 4762)
- Rotation range: ±15° adjustable swing angle
- Operating temp: -40℃ to 150℃ (ambient non-condensing)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Weight: 184g ±3% (including all mounting hardware)
- Dimensions: 48mm(L) × 34mm(W) × 28mm(H) (compact profile)
Precision-engineered swing bracket with anti-backlash design, featuring dual angular contact bearings for smooth pivot motion. Includes pre-loaded wave washers to maintain clamping force under vibration. Anodized surfaces provide corrosion resistance in humid environments (tested to 96hrs salt spray).
- Robotic end-effector tooling mounts
- Conveyor system guide rail supports
- Packaging machine rotary joint interfaces
- Semiconductor handling arm linkages
- Medical device actuator pivots
Mounting protocol:
Apply 0.6-0.8Nm torque during assembly. Use thread locker (medium strength)
on pivot screws. Lubricate bearing surfaces with ISO VG32 hydraulic oil
before initial operation. Avoid overtightening - maximum deflection ≤0.05mm.
| Property | Property Value |
|---|---|
| sku | F-PB12CJ |
