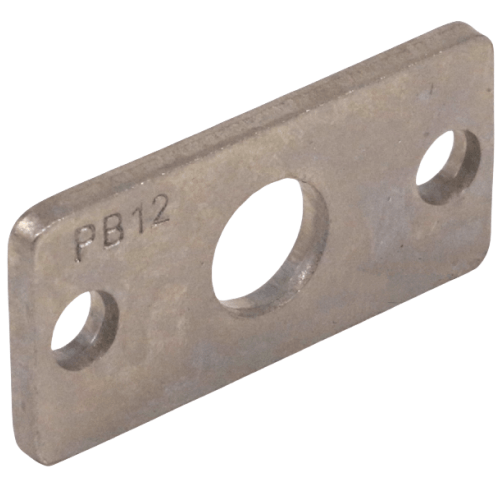

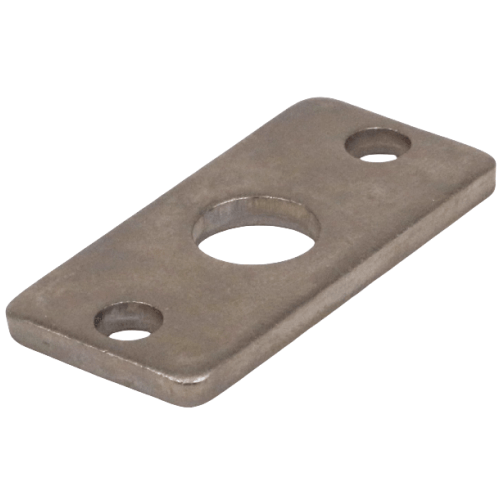

Airtac F-PB-FA Front Flange Mounting Plate Assembled Kit F-PB10FA
Brand: Airtac
Series: F-PB-FA Front Flange Mounting Bracket Complete Set
AirTAC F-PB-FA Front Flange Mounting Plate Kit F-PB10FA Specifications
- Model: F-PB10FA (Complete Kit)
- Compatible Series: Standard ISO Cylinders (SC/SU/SD)
- Material: Anodized Aluminum Alloy 6063-T5
- Surface Treatment: Natural color anodization (6-8μm)
- Mounting Type: Front flange fixed plate with pre-assembled hardware
- Bore Size Compatibility: ø10mm cylinders
- Thread Specifications: M5×0.8 mounting screws (4 places)
- Mounting Hole Pattern: 20mm × 20mm square configuration
- Plate Thickness: 8mm ±0.1
- Weight: 128g ±3g (including fasteners)
- Dimensions: 40mm(L) × 40mm(W) × 8mm(H)
- Operating Temperature: -20℃ to 150℃ (static mounting)
- Torque Rating: Max 4.5N·m for mounting screws
- Corrosion Resistance: 500hr salt spray test passed
Precision-machined mounting solution for rigid cylinder fixation, featuring anti-vibration design with integrated steel reinforcement inserts. Includes stainless steel SHC screws and spring washers for industrial-grade fastening. Anodized surface resists mechanical wear and chemical corrosion.
- Modular pneumatic assembly systems
- Robotic end-effector mounting
- Linear actuator installations in cleanrooms
- Precision alignment fixtures for CNC tooling
- Vibration-sensitive measurement equipment
Installation protocol:
Apply 0.2-0.3N·m pre-torque during alignment, then final torque to 4N·m in cross pattern.
Use thread locker (LOCTITE 243 recommended) for high-vibration environments.
| Property | Property Value |
|---|---|
| sku | F-PB10FA |
