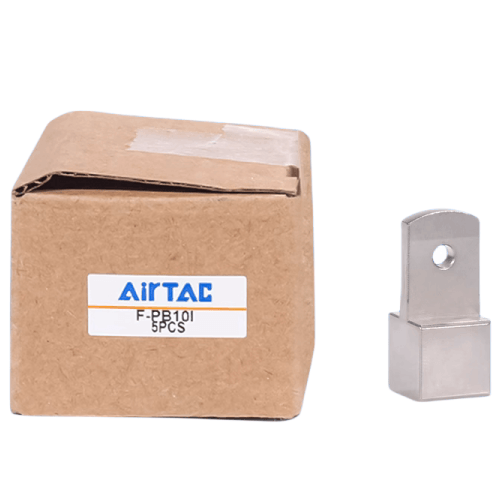

Airtac F-PB-I Adapter Assembly Kit F-PB10I
AirTAC F-PB-I Series Fitting Kit: F-PB10I Full Specifications
- Model: F-PB10I (Complete Fitting Package)
- Thread Standard: Metric (M10×1.0)
- Material: Brass with nickel plating (core components)/NBR seals
- Max Working Pressure: 1.5 MPa (217 PSI)
- Burst Pressure: ≥4.5 MPa
- Temperature Range: -20℃ to 80℃ (continuous operation)
- Port Configuration: 10mm push-in pneumatic fitting
- Hose Compatibility: ID 6mm polyurethane/nylon tubing
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Weight: 198g ±5g (complete kit)
- Dimensions: 62mm(L) × 34mm(W) × 28mm(H) (assembled)
- IP Rating: IP54 (dust protected, water splashes)
- Cycle Life: 500,000+ connections (with proper maintenance)
Industrial-grade push-to-connect fitting kit designed for rapid tubing installation in confined spaces. Features dual O-ring retention system with dust cap protection, ensuring leak-free connections under dynamic pressure fluctuations. The 45° angled port design enables tool-free tube insertion/removal while maintaining optimal flow characteristics (CV=0.15).
- Modular pneumatic assembly lines requiring quick reconfiguration
- Robotic end effector tooling with frequent hose changes
- CNC machine coolant line auxiliary connections
- Laboratory pneumatic instrument clusters
- Mobile hydraulic test bench interfaces
Installation Protocol:
Cut tubing ends square (max 0.5mm deviation), deburr thoroughly, and insert until
audible click. For high-vibration environments, apply 0.5-0.8Nm torque to collar lock.
Replace O-rings every 3 years or 1000 cycles.
• AT-6C10 Pneumatic Crimper (for permanent installations)
• AS-10M Adapter Sleeve (metric-to-NPT conversion)
• LUB-200 NSF-H1 Certified Seal Lubricant
| Property | Property Value |
|---|---|
| sku | F-PB10I |
