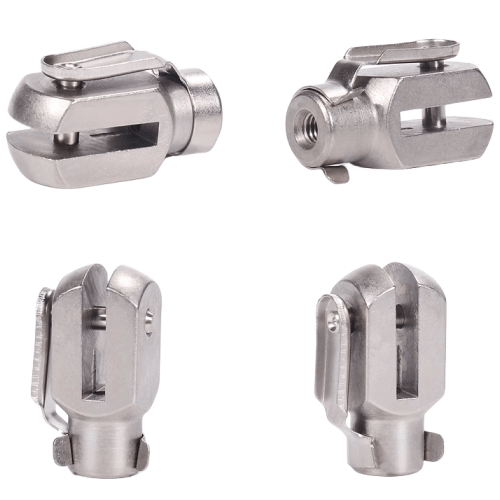

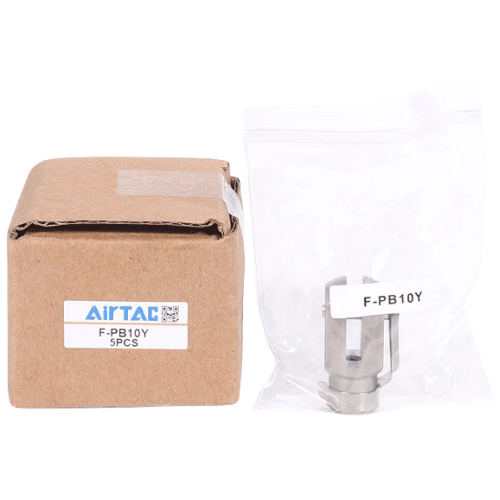

Airtac F-PB-Y Connector Assembly Kit F-PB10Y
Brand: Airtac
Series: F-PB-Y Union Fitting Assembly Kit
This professional-grade pneumatic connector solution features standardized Y-shaped port configuration with precision-machined threads for leak-proof connectivity. Engineered for cylinder piping systems requiring 120° branch connections, the assembly includes pre-configured components with corrosion-resistant electrogalvanized finish. Compatible with ISO 6431/6432 cylinder interfaces, it supports working pressures up to 1.0MPa while maintaining φ8-φ16mm flow efficiency. The kit contains factory-tested union bodies, sealing elements, and mounting accessories for O.D.-based tube installations.
AirTAC F-PB-Y Series Fitting Kit F-PB10Y Technical Details
- Model: F-PB10Y (Complete Assembly Kit)
- Type: Push-in pneumatic quick connector set
- Body material: Nickel-plated brass (corrosion resistant)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Thread standard: G1/8 (BSPP parallel thread)
- Operating pressure: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (continuous use)
- Peak temperature: 120℃ (intermittent, max 30 mins)
- Tube compatibility: Ø10mm polyurethane/nylon tubing
- Vibration resistance: ≤15Hz frequency, 1.5mm amplitude
- Weight: 228g ±5g (complete kit with packaging)
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H) (retail package size)
- Individual fitting length: 42mm (excluding thread protrusion)
- IP rating: IP54 (dust protected, splash resistant)
- Cycle life: 50,000+ insertions (with proper maintenance)
Pre-assembled push-to-connect solution featuring tool-free installation and leak-resistant design. The dual-locking collar mechanism ensures secure tube retention under vibration, while the 360° rotatable body allows flexible piping alignment. Includes pre-installed O-rings and anti-pullout teeth for nylon tubes.
- Modular pneumatic circuit assembly lines
- CNC machine tool coolant systems
- Automated packaging equipment air lines
- Semiconductor factory vacuum line connections
- Robotic arm end effector pneumatic networks
Installation protocol:
Cut tubing square with dedicated cutter, insert fully until "click" sound.
For maintenance: Push release collar fully before tube removal. Lubricate with
silicone grease (non-petroleum based) annually in high-cycle applications.
