Airtac F-RMS Axial Mounting Bracket Assembly F-RMS20LB
$6.94
Regular price
$14.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-RMS20LB
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories | Brand: AIRTAC | Series: F-RMS
Axial Mounting Bracket Complete Package

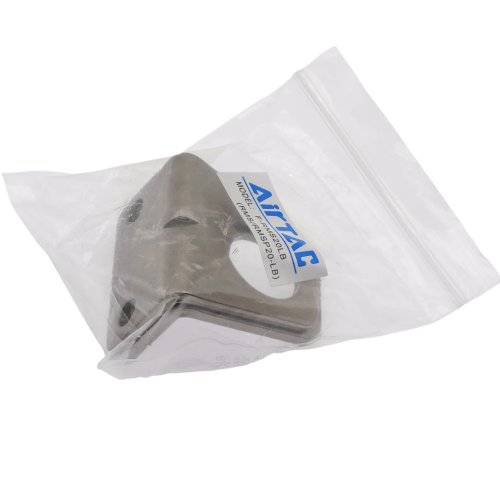

The AIRTAC F-RMS series axial mounting bracket assembly is a precision-engineered cylinder accessory designed for secure axial alignment and vibration-resistant fixation of pneumatic actuators. This complete package integrates hardened mounting hardware and standardized interfaces, ensuring optimal load distribution and mechanical stability in automated systems. Featuring corrosion-resistant materials and ISO-compliant dimensions, it enables seamless integration with AIRTAC cylinder families while maintaining positioning accuracy under dynamic operating conditions. The pre-assembled kit simplifies installation processes and enhances maintenance efficiency in industrial automation applications.
Installation protocol:
Apply 20-25N·m sequential torque in cross pattern. Use 0.02mm feeler gauge
to verify rail-bracket contact. Requires Loctite 243 threadlocker on fasteners.
AirTAC F-RMS20LB Axial Mounting Bracket Kit Technical Details
- Model: F-RMS20LB (Complete Kit)
- Compatible Rail Series: AIR/SSU/SRS 20mm width linear guides
- Material: 6063-T5 Aluminum Alloy (hard anodized surface)
- Mounting Hole Pattern: 32mm × 24mm (4×M5 threaded holes)
- Axial Load Capacity: 1,200N static / 800N dynamic
- Clamping Force: 15N·m (torque recommended for M5 screws)
- Weight: 328g ±5g (including mounting hardware)
- Dimensions: 68mm(L) × 42mm(W) × 28mm(H)
- Surface Hardness: HV400-450
- Operating Temperature: -40℃ to 120℃
- Included Components: Bracket body, 4×M5×12mm SHCS, 4×spring washers, 4×flat washers
Precision-machined axial retention system designed for linear motion stabilization in high-cycle applications. Features diamond-knurled contact surfaces for anti-slip performance and laser-etched alignment markers. Compatible with ISO 10285 standard rails.
Implementation Scenarios:
- Industrial robot joint axis reinforcement
- CNC gantry Z-axis anti-backlash setups
- Automated packaging line shuttle systems
- Semiconductor wafer handling robots
- 3D printer dual-Z drive synchronization
Installation protocol:
Apply 20-25N·m sequential torque in cross pattern. Use 0.02mm feeler gauge
to verify rail-bracket contact. Requires Loctite 243 threadlocker on fasteners.
| Property | Property Value |
|---|---|
| sku | F-RMS20LB |
| Bore Diameter | <20mm> |
