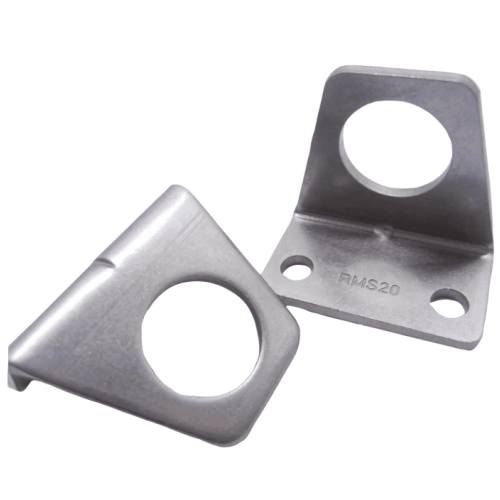

Airtac F-RMSF Axial Fixing Bracket Assembly Kit F-RMSF20LB
AirTAC F-RMSF20LB Axial Fixation Bracket Complete Kit Specifications
- Model: F-RMSF20LB
- Type: Axial mounting bracket with pre-assembled components
- Compatible rail size: 20mm width linear guides
- Material: Aluminum alloy 6063-T5 (anodized surface)
- Load capacity: Static 1,200N / Dynamic 600N
- Fastener type: M6×12 stainless steel hex socket screws (4 pcs included)
- Mounting hole pattern: 32mm×32mm square configuration
- Surface hardness: HV 80-100
- Operating temperature: -40℃ to 120℃
- Weight: 0.48kg ±5%
- Dimensions: 60mm(L) × 42mm(W) × 28mm(H)
- Vibration resistance: ≤15Hz @ 2mm amplitude
- Corrosion resistance: 96hr salt spray test compliant
High-precision axial retention system designed for linear motion applications. Features dual-contact locking mechanism with ±0.02mm parallelism tolerance. Includes pre-lubricated wear plates and anti-backlash shims for maintenance-free operation. Compatible with ISO 10285 standard linear guide blocks.
- CNC machine tool Z-axis stabilization
- Automated warehouse shuttle positioning
- 3D printer gantry alignment systems
- Semiconductor wafer handling robots
- Medical imaging equipment sliding mechanisms
Installation protocol:
Apply 0.8-1.2N·m torque during screw tightening using alternating diagonal pattern.
Requires periodic inspection every 2,000 operational hours (clean with IPA solution).
| Property | Property Value |
|---|---|
| sku | F-RMSF20LB |
| Bore Diameter | <20mm> |
