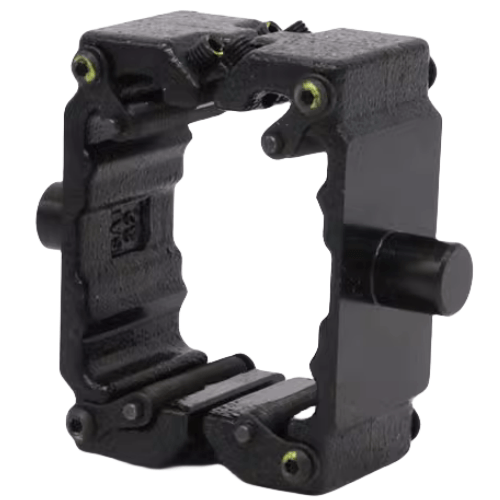

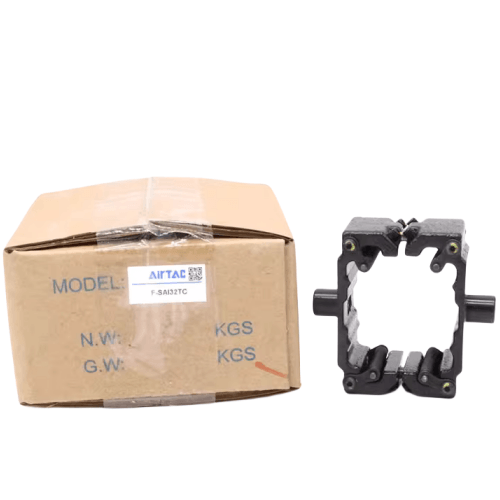

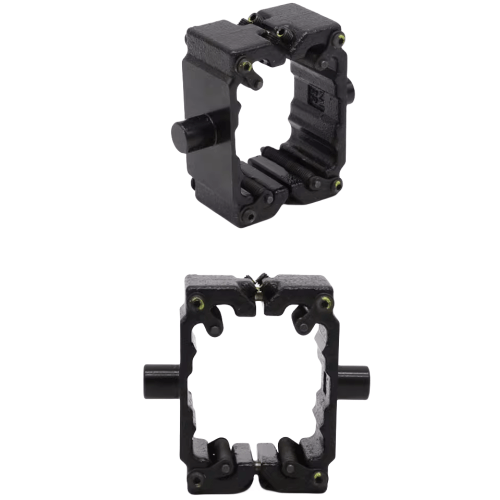

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI100TC
AirTAC F-SAI-TC Series Center Pivot Bracket Kit F-SAI100TC Specifications
- Model: F-SAI100TC
- Type: Center pivot bracket kit with integrated trunnion mount
- Material: Aluminum alloy (ADC12) with black anodized finish
- Load capacity: 1,200N radial / 800N axial (static conditions)
- Mounting hole pattern: Dual M8 threaded holes (6mm depth)
- Pivot diameter compatibility: Ø10-25mm cylinders
- Surface hardness: HV 120±15
- Temperature range: -20°C to 80°C
- Weight: 328g ±5g
- Dimensions: 72mm(L) × 52mm(W) × 38mm(H)
- Fasteners included: 2×M8×20 hex socket screws (Class 12.9)
- Anti-corrosion rating: 96hrs salt spray test passed
Precision-machined alignment bracket designed for mounting pneumatic cylinders in parallel configurations. Features dual-force absorption design with reinforced rib structure, enabling stable load transfer while compensating for angular misalignment up to ±3°. Includes vibration-dampening washers and anti-loosening thread locker pre-applied.
- Multi-axis robotic arm joint stabilization
- Packaging machine vertical lift mechanisms
- Automated conveyor sorting arms
- Medical bed actuator mounting systems
- Semiconductor handling robot bases
Installation protocol:
Apply 12-15Nm torque during screw tightening. Use shim washers when mounting
on surfaces with roughness above Ra3.2. Lubricate pivot contact surfaces with
ISO VG32 hydraulic oil before operation.
