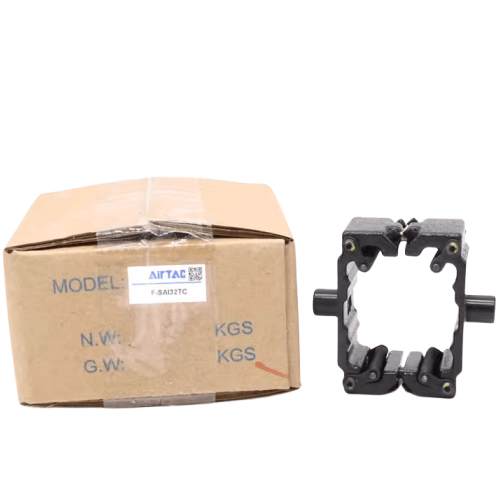

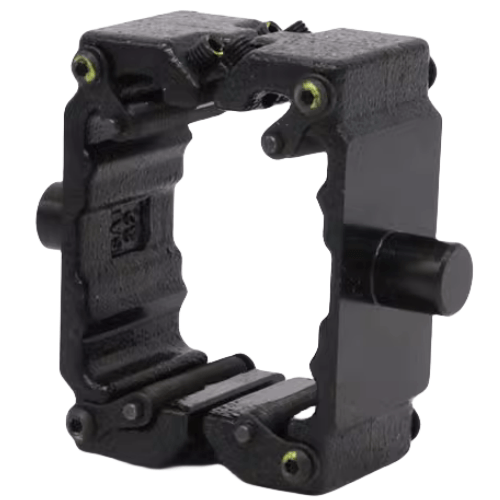

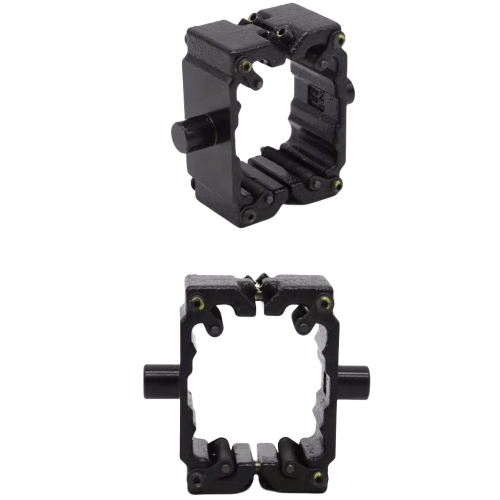

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI125TC
AirTAC F-SAI-TC Series Center Pivot Bracket Kit (F-SAI125TC) Specifications
- Model: F-SAI125TC
- Type: Pre-assembled center pivot bracket kit
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (natural silver)
- Static load capacity: 2,500 N (axial), 1,800 N (radial)
- Mounting hole diameter: Ø12.5mm (precision honed)
- Compatible cylinder bore size: Ø125mm
- Bearing type: Needle roller bearing (SAI-TC series standard)
- Operating temperature: -20℃ to 150℃
- Mounting torque: 25-30 N·m (recommended)
- Weight: 0.65 kg ±2%
- Dimensions: 125mm(L) × 45mm(W) × 38mm(H)
- Hardness: 80-85 HBW
- Corrosion resistance: 96hrs salt spray test passed
Precision-machined pivot bracket designed for heavy-duty cylinder mounting, featuring integrated needle bearings for smooth rotational movement. The pre-lubricated assembly reduces friction wear and eliminates need for maintenance lubrication. Includes pre-installed high-tensile class 12.9 mounting bolts with anti-loosening patches.
- Rotary clamping mechanisms in CNC fixtures
- Pneumatic press rotating arm assemblies
- Automated material handling turntables
- Packaging machine pivot joints
- Robotic welding positioner linkages
Installation protocol:
Always align bracket centerline with cylinder axis (±0.1mm tolerance).
Use torque wrench for bolt tightening and perform rotational test
(3-5 full cycles) before load application. Compatible with MAL/MA series
cylinders when using adapter sleeve AS-125TC.
| Property | Property Value |
|---|---|
| sku | F-SAI125TC |
