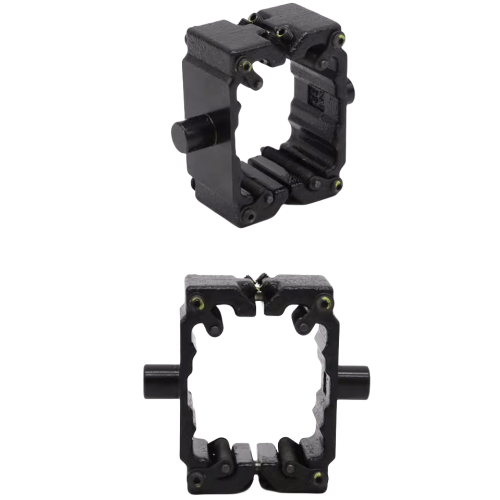

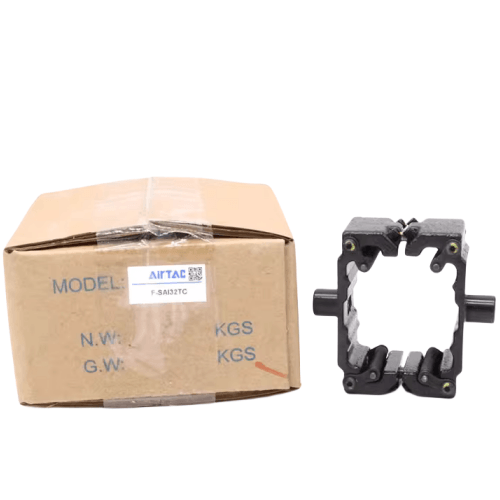

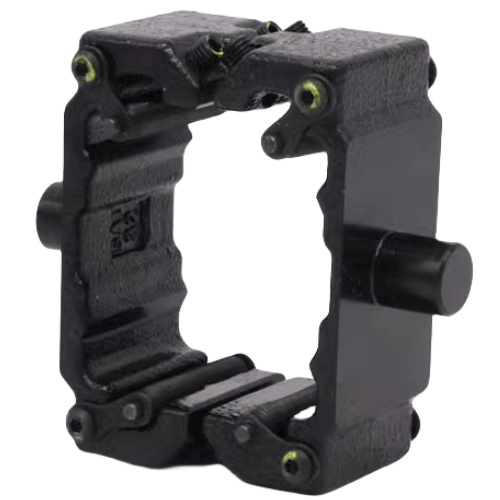

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI32TC
AirTAC F-SAI-TC Intermediate Trunnion Bracket Kit F-SAI32TC Specifications
- Model: F-SAI32TC
- Type: Standard trunnion bracket kit (pre-assembled)
- Compatible cylinder series: SDA/SI/SI-C/SI-T/SL/SL-F
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Mounting type: Dual trunnion axis with through-hole design
- Bore size compatibility: Φ32mm cylinders
- Screw specifications: M8×1.25 mounting threads
- Static load capacity: 1,960N (200kgf)
- Dynamic load capacity: 980N (100kgf)
- Weight: 318g ±5g
- Dimensions: 80mm(L) × 42mm(W) × 54mm(H)
- Operating temperature: -20℃ to 100℃
- Corrosion resistance: 96hr salt spray test compliant
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-engineered mounting solution for cylinder stabilization, featuring dual-axis reinforcement and wear-resistant design. The T-slot groove allows ±2mm positional adjustment during installation. Includes pre-installed lock nuts and shock-absorbing washers for vibration-heavy environments.
- Robotic arm joint articulation systems
- Vertical lifting mechanisms in assembly lines
- High-cycle packaging machinery actuators
- Automated welding equipment positioning
- Material handling systems with lateral forces
Installation protocol:
Apply 14-16N·m torque to mounting screws using cross-tightening sequence.
Regularly inspect axis parallelism (max 0.1mm deviation) during maintenance cycles.
