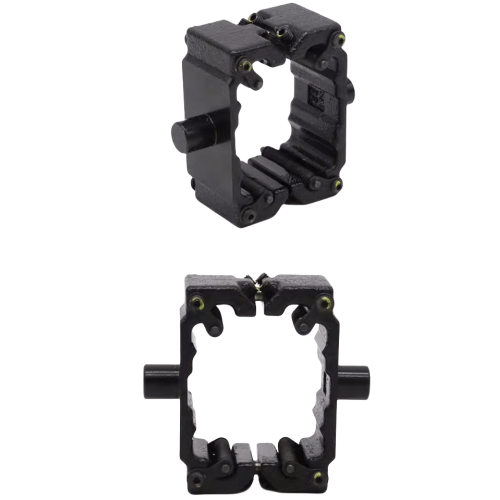

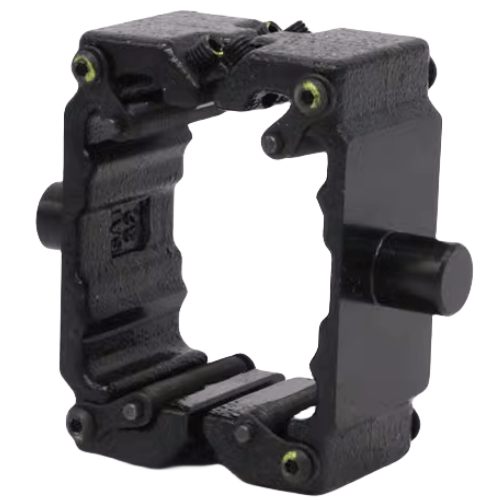

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI40TC
AirTAC F-SAI-TC Middle Trunnion Bracket Kit F-SAI40TC Technical Details
- Model: F-SAI40TC (Complete Bracket Assembly)
- Material: Aluminum alloy ADC12 with black anodized finish
- Compatible Cylinder Series: MYTB40 series standard cylinders
- Mounting Hole Pattern: 60mm center-to-center distance (ISO 15552 compliant)
- Bolt Specifications: M8×1.25 mounting threads (grade 8.8 zinc-plated steel)
- Maximum Torque: 24 N·m (17.7 lb-ft) tightening torque limit
- Operating Temperature: -20°C to 80°C (-4°F to 176°F)
- Static Load Capacity: 850 N vertical / 1,200 N horizontal
- Dynamic Load Rating: 450 N at 0.5 MPa working pressure
- Weight: 0.65 kg (1.43 lbs) ±2% tolerance
- Dimensions: 76mm(L) × 40mm(W) × 40mm(H)
- Surface Hardness: HV 120-150 (anodized layer)
- Corrosion Resistance: 96hr salt spray test passed
Precision-engineered trunnion bracket for secure cylinder mounting with 360° rotational adjustment capability. Features dual-locking hex nuts for vibration resistance and integrated alignment grooves for rapid installation. Includes stainless steel wear pads to prevent metal-to-metal contact during pivot movements.
- Robotic arm articulation joints in assembly lines
- Packaging machinery with oscillating motion requirements
- Material handling systems with variable angle positioning
- Plastic injection molding machine ejector mechanisms
- Test equipment requiring torque absorption
Installation Protocol:
Apply medium-strength thread locker (Loctite 243 recommended) to mounting bolts.
Use torque wrench with 20-22 N·m tightening sequence. Align arrow mark on bracket
with cylinder's pressure direction indicator. Perform load test at 50% capacity
before full operation.
| Property | Property Value |
|---|---|
| sku | F-SAI40TC |
