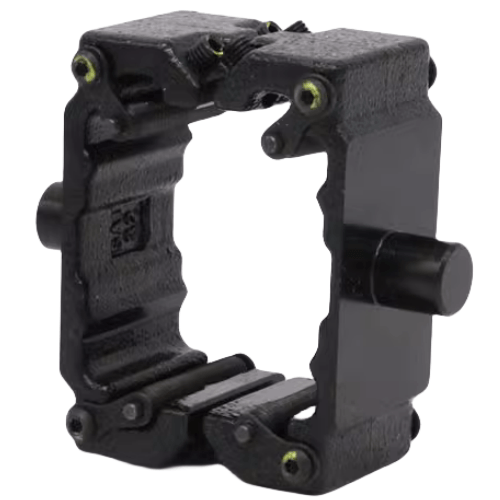

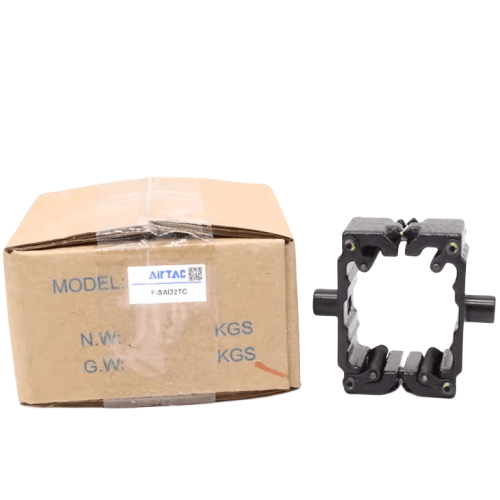

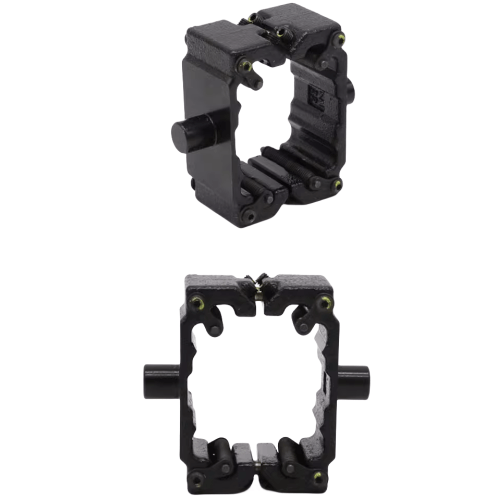

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI50TC
AirTAC F-SAI-TC Center Pivot Bracket Complete Kit (F-SAI50TC) Specifications
- Model: F-SAI50TC
- Type: Single pivot bracket kit (pre-assembled)
- Compatible cylinder series: SAI-50
- Material: Aluminum alloy (AL6063-T5)
- Surface treatment: Anodized (black)
- Mounting hole size: M8 threaded
- Bore diameter compatibility: Ø50mm cylinders
- Static load capacity: Max. 120kg (radial direction)
- Operating temperature: -20℃ to +80℃
- Mounting torque: 12-15 N·m (M8 screws)
- Corrosion resistance: 96hr salt spray test passed
- Weight: 0.82kg ±2%
- Dimensions: 120mm(L) × 45mm(W) × 30mm(H)
- Included components: Bracket body, M8×20 mounting screws (2pcs), anti-vibration washers (2pcs)
High-precision machined pivot bracket designed for SAI series cylinders, featuring dual-bearing support structure for enhanced lateral load capacity. The hard-anodized surface provides wear resistance in harsh environments. Pre-lubricated bushings ensure smooth rotation with ≤0.1mm radial play.
- Robotic arm joint articulation systems
- 90° cylinder mounting in automated assembly lines
- Pneumatic clamping device pivot points
- Conveyor diverter arm installations
- Packaging machine rotary actuators
Installation protocol:
Use torque wrench for screw tightening (12-15N·m range). Apply thread-locking compound
on fasteners in high-vibration environments. Align bracket axis within ±0.5° of cylinder
centerline. Perform lubrication maintenance every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SAI50TC |
