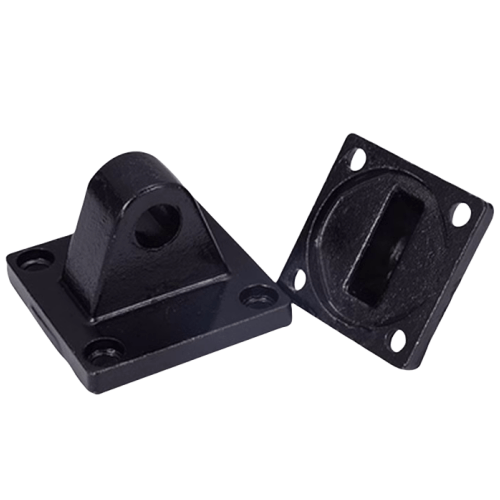

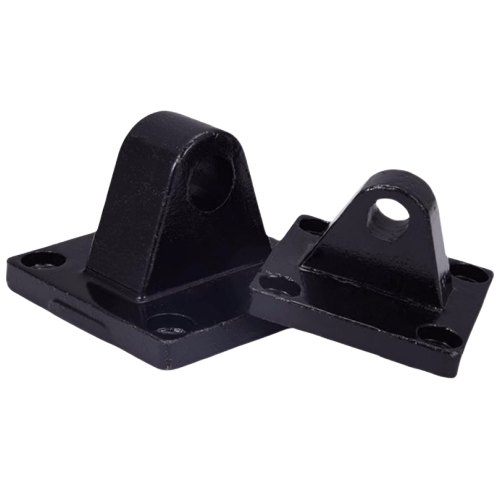

Airtac F-SC-CA Single Lug Bracket Assembly F-SC100CA
AirTAC F-SC-CA Single-Ear Bracket Kit F-SC100CA Technical Details
- Model: F-SC100CA (Complete Kit)
- Bracket type: Single-ear fixed mounting bracket
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (Black/Silver optional)
- Mounting hole spacing: 32±0.2mm (Horizontal) × 18±0.2mm (Vertical)
- Compatible cylinder series: SC/SU/SDA/SDB/SE series
- Max load capacity: 50kg static load
- Operating temperature: -20℃ to 80℃
- Mounting torque: 2.5-3.0 N·m (for M5 screws)
- Included hardware: 2×M5×12 hex socket screws, 2×spring washers, 2×flat washers
- Weight: 280g ±5% (including all components)
- Dimensions: 100mm(L) × 42mm(W) × 25mm(H)
- Corrosion resistance: 96hr salt spray test compliant
Heavy-duty single-ear bracket designed for secure cylinder mounting in high-vibration environments. Features precision-machined alignment grooves and dual reinforcement ribs. The anodized surface provides enhanced wear resistance, while the optimized geometry allows 360° adjustable positioning during installation.
- Industrial robotic arm joint fixation
- Packaging line cylinder mounting
- Automated assembly station positioning
- CNC machine tool pneumatic component installation
- Material handling system actuator support
Installation guidance:
Use torque wrench for screw tightening to prevent aluminum thread stripping.
Apply thread-locking compound (medium strength) for permanent installations.
Align cylinder body with bracket's reference edge before final tightening.
